SI Board Swap Out Step #7
SI Board Swap Out Step #7

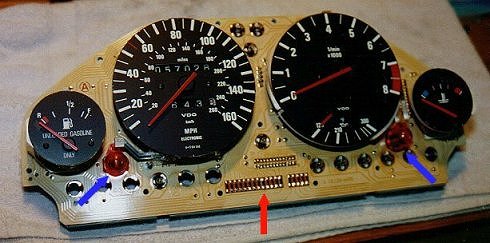

This is the previously shown light blue back of the instrument cluster which has now been flipped over and placed on the towel.  Note how exposed the gauge needles are - they are easy to knock out of position or bend at this time.  The SI Board is actually part of the front of the instrument cluster but there are some interesting details to be seen here.

The blue arrows point out the orange bulbs which light the instruments and give the cluster that characteristic BMW hue at night.  I suppose this would be a good time to perform some preventative maintenance and replace these bulbs.  I neglected to do this myself 8^(

The red arrow shows the electrical connector which accepts the prongs on the backside of the SI Board.  This will become clear in the next series of photographs.
