Miscellaneous Roll Cage Details
« Previous / Next »
Page 7

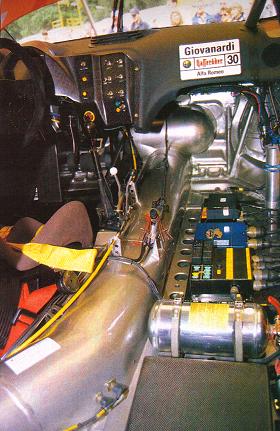

 Alpha Romeo 156 Exhaust Tunnel

This is a good view of the exhaust tunnel on the Alpha 156 (remember it's FWD so no driveshaft). Note how the tunnel is completely reworked to move it over to the passenger side in order to allow the driver to sit closer to the center of the car. This is similar to the Dodge Stratus that we saw earlier.

Looking up in the passenger side footwell one can see some of the reinforcement that has been added to the chassis, as well as the steel girder running next to the computers on the passenger floor.
