 WRC Strut Tower Triangulation

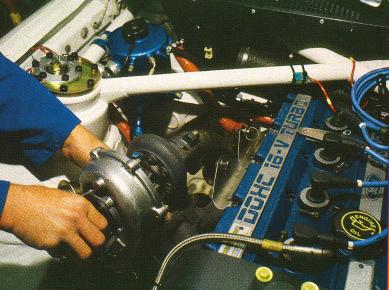

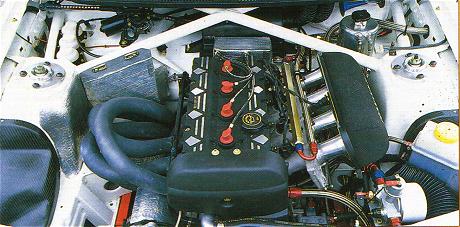

This is a WRC car (FIA World Rally Championship). The point of interest here is the way that the designers triangulated the front shock towers. The method is identical to what I did on my old Rabbit 16V. Below is another example of the same idea on an English Club Racer.

 WRC Strut Tower Triangulation
