E36 McLaren Super Touring Car
« Previous / Next »
Page 8

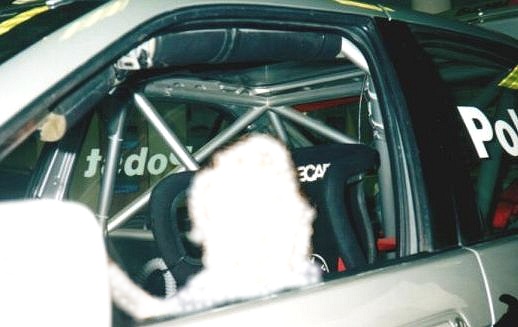

 Roll cage tubes along the roof of the double main hoop design This photo highlights how the tubes are laid out along the roof of the rear double main hoop area. It is not apparent that there is a diagonal across the rear part of the roof, but it could be just out of visibility.
