E36 McLaren Super Touring Car
« Previous / Next »
Page 7

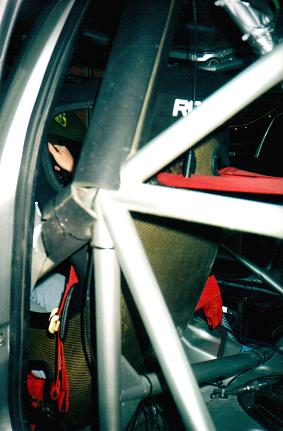

 The tube arrangement as viewed through the rear door A view of the tube arrangement as viewed through the rear driver's side door. The back of the Recaro seat can easily be seen. Again note the treatment of the shoulder harness and the lack of a seat brace. The idea is to give the driver a "safety cell" into which nothing intrudes.

As with any good cage, all of the tubes come together at a point where they join. Note that the cage is not tied into the B-pillar.
