Gary Bossert's D-Mod Roll Cage: Photo #7
Gary Bossert's D-Mod Roll Cage: Photo #7

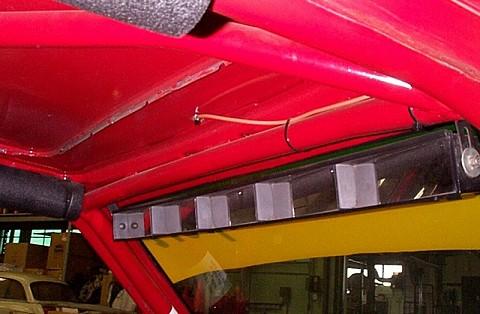

A nice clean layout above the windshield. Gary has the "roof diagonal" going in the opposite direction from the Grp A cage. This would appear to offer less headroom, but Gary probably sits so low that it does'nt matter! The cage is fit very tightly into the unibody. This is tough to achieve but worth the effort. It makes the combined chassis/cage stiffer and it gives the driver a larger envelope in which to conduct business. A contemporary cage will often incorporate gussets (or small diagonals) in the upper corners of the cage.
