Gary Bossert's D-Mod Roll Cage: Photo #6
Gary Bossert's D-Mod Roll Cage: Photo #6

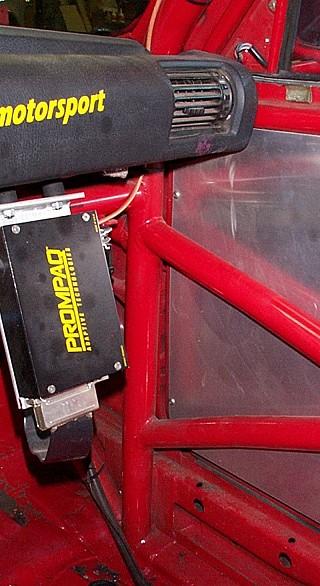

This is the passenger side door-X tying into the front bar coming down to the passenger's side footwell. One can just make out a tube shooting up towards the passenger side strut tower (and a second one higher up). The so called "dash bar" is also plainly visible. The door-X would have been better executed if the bottom tube had contacted the vertical forward bar "at the floor" and if the upper x-bar had contacted at the same point as the dash bar. A contemporary cage will often incorporate gussets (or small diagonals) in the upper corners of the cage.
