Modified Armrest
more clearance for your elbows

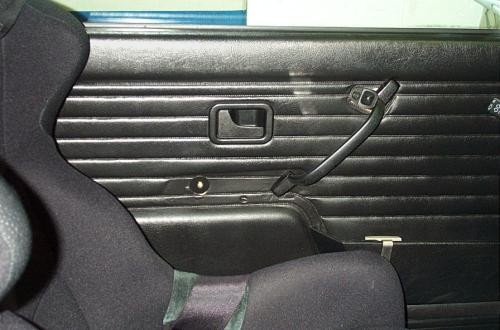

Modified E30 armrest provides more clearance for your elbows

This is one of those mods that costs nothing and only takes about 10 minutes. If you have lowered the seat in your E30, and especially if you have also moved the steering wheel closer to you with a spacer, then you will find that your elbows start hitting the armrest during spirited driving.

An easy solution is to simply remove that portion of the armrest. This is possible. Nothing needs to be cut, and the process is 100% reversible. You can use one of the "Oh Jesus" handles from the rear passenger compartment to act as something with which to close the door.

The electric mirror switch can be swedged in between the upper attachment point for the grab handle and the door panel. It sits in there quite securely. The whole thing ends up looking almost factory. If desired, the depression in the door panel (from the old armrest) can be mostly removed with a heat gun or hair drier. But the door panel vinyl also springs back over time, these pictures were taken right after I removed the armrest.

Now you can drive unfettered and free!

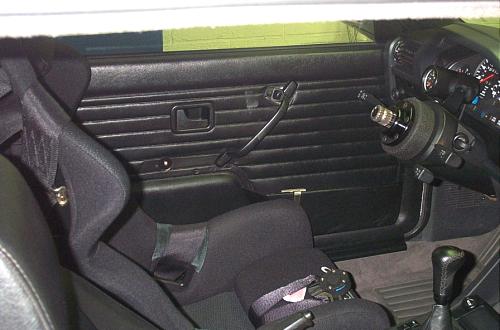

Modified E30 armrest provides more clearance for your elbows
