Late Model DTM E30 M3
Technical Highlights

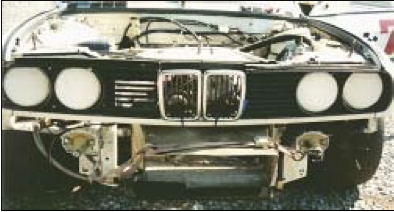

Front end of DTM E30 M3 These photos come to us courtesy of David Pan. He went to inspect this car when it was for sale in the U.S. back in the mid-90's. It is a late model DTM racecar, from the 1992 season and originally prepared by BMW Motorsport.

Reportedly this car represents the last evolution of Motorsport DTM kit. The engine had 8 injectors and was capable of producing over 370HP. The car uses lightweight sheetmetal, which David said could be felt to flex on the rear quarter panels and the doors. The car is also fitted with a racing ABS system. This car was sold to a UK buyer in the 96/97 timeframe.

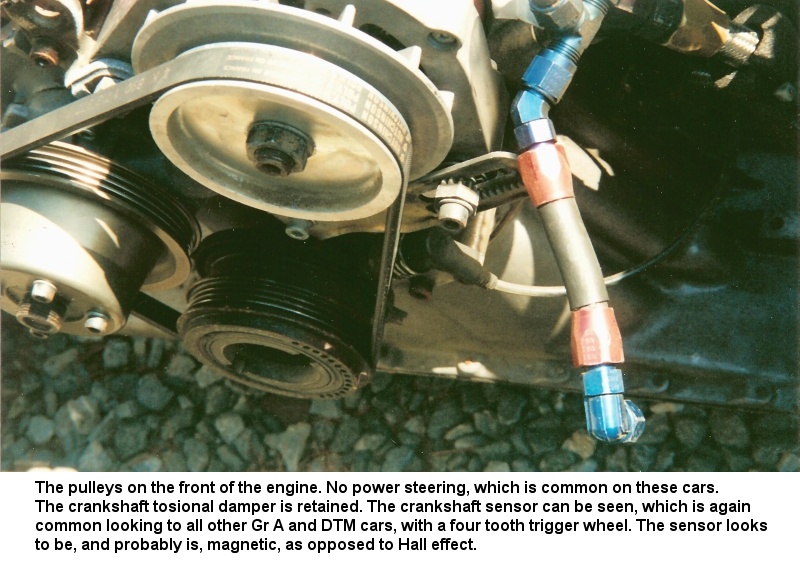

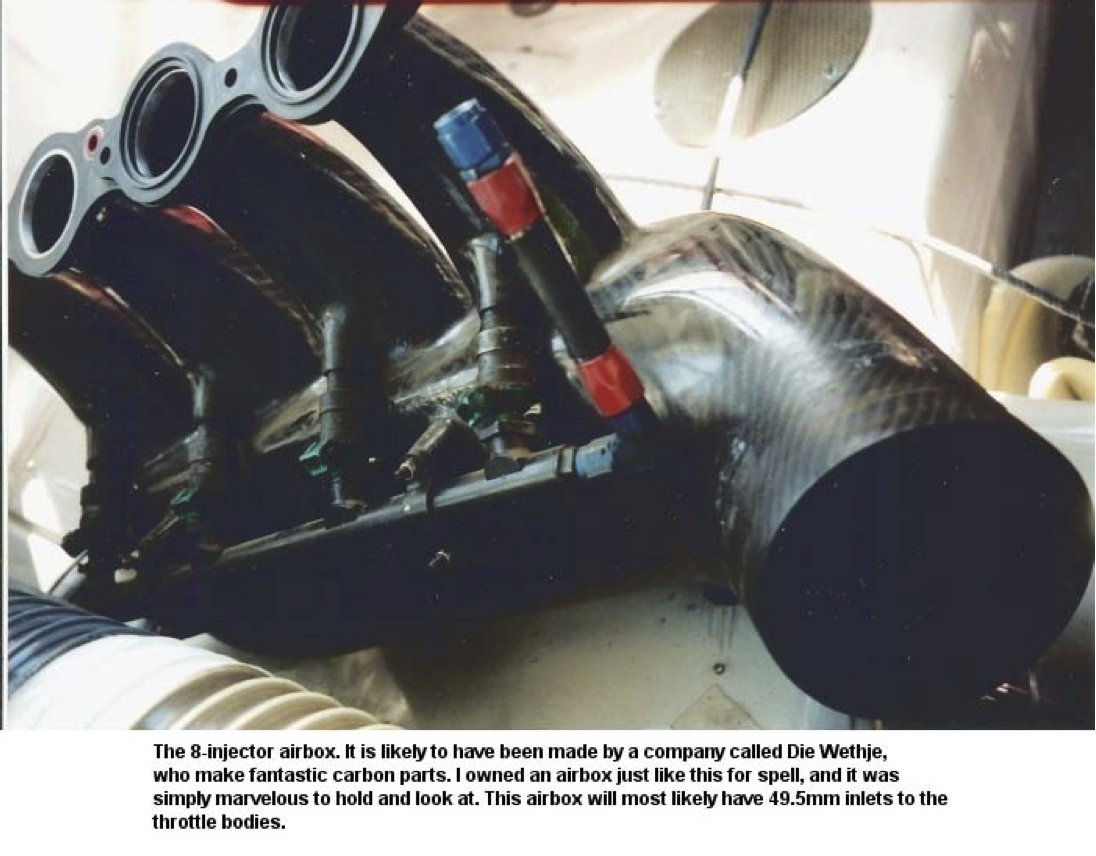

8 Injector Airbox Crankshaft damper and pulleys

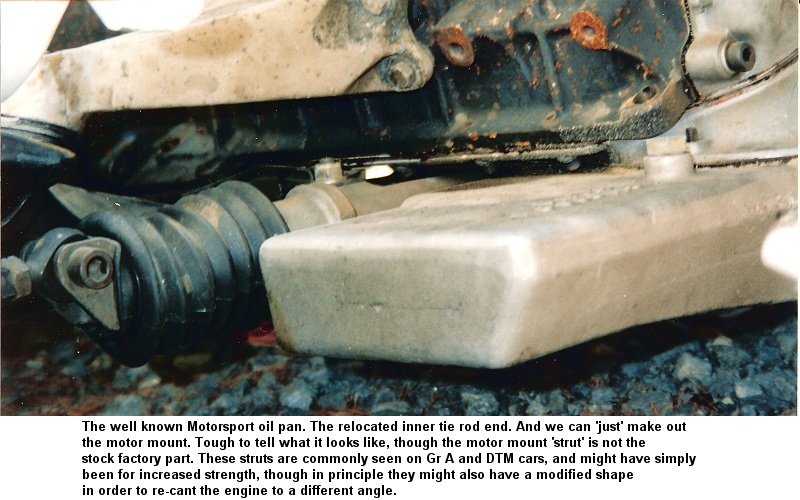

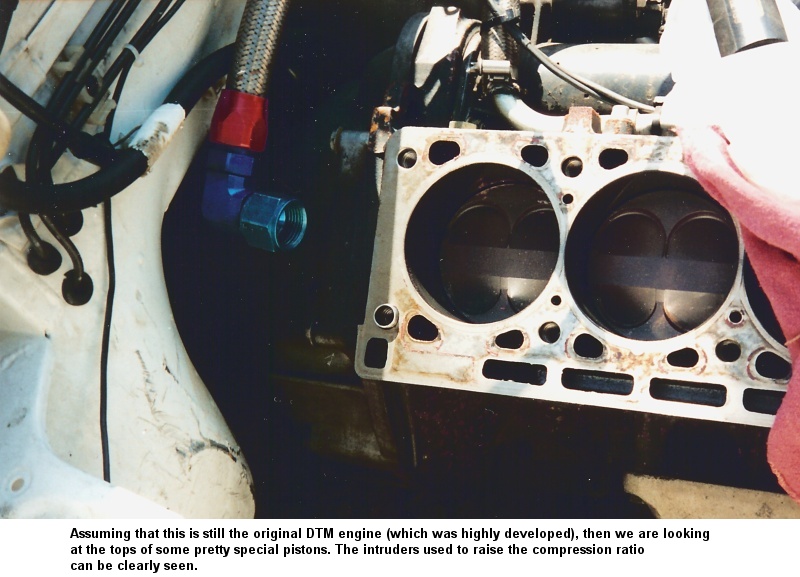

Bottom of engine and oil sump The Pistons Tops

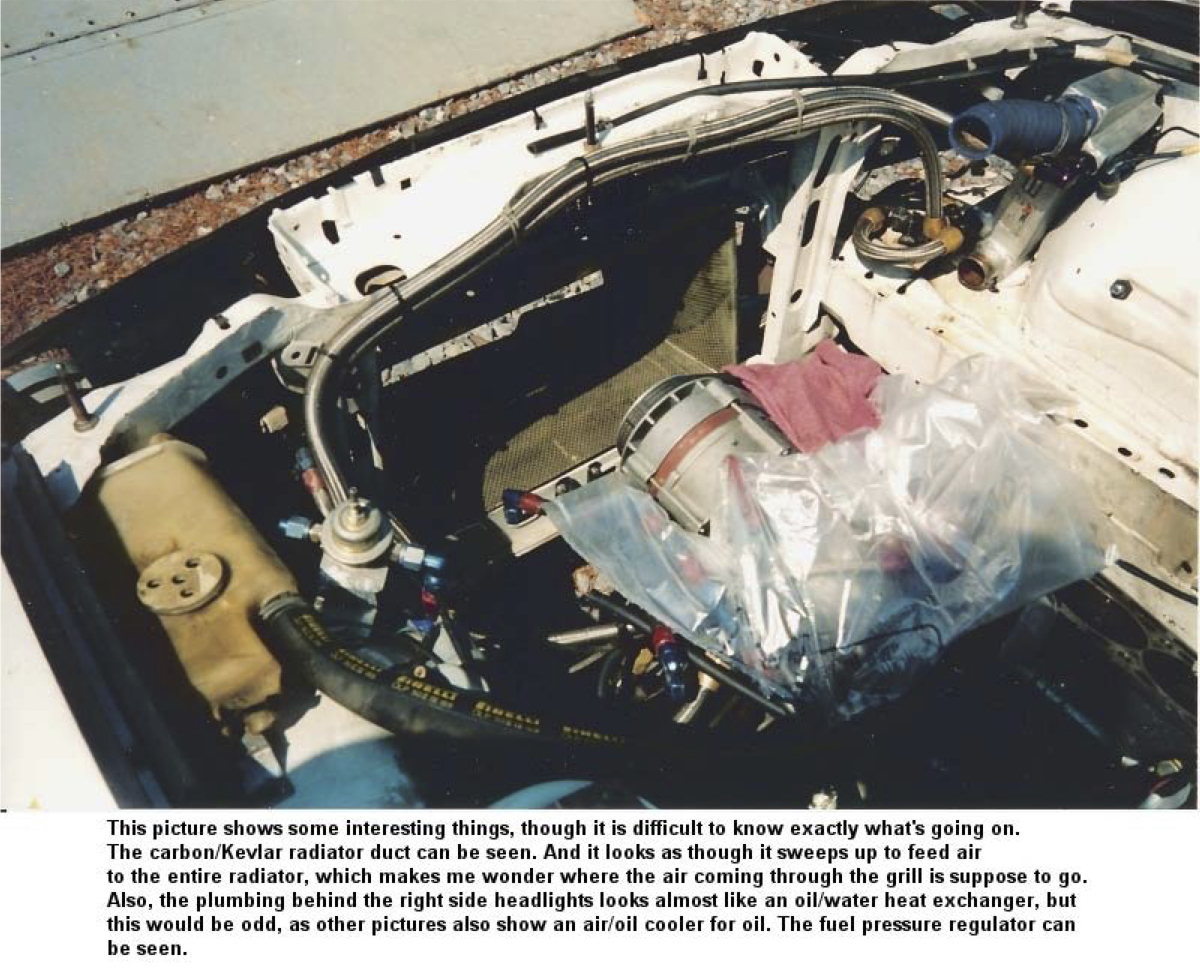

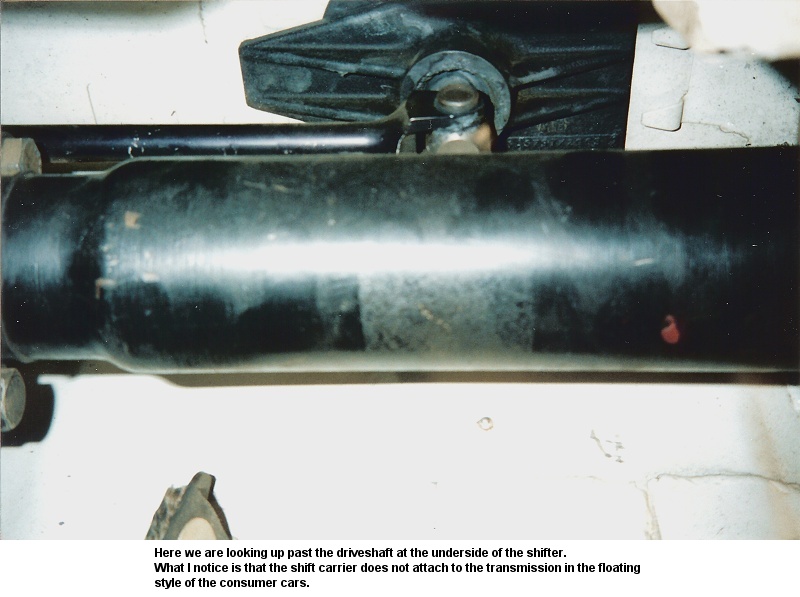

Radiator Ductwork Shift Linkage

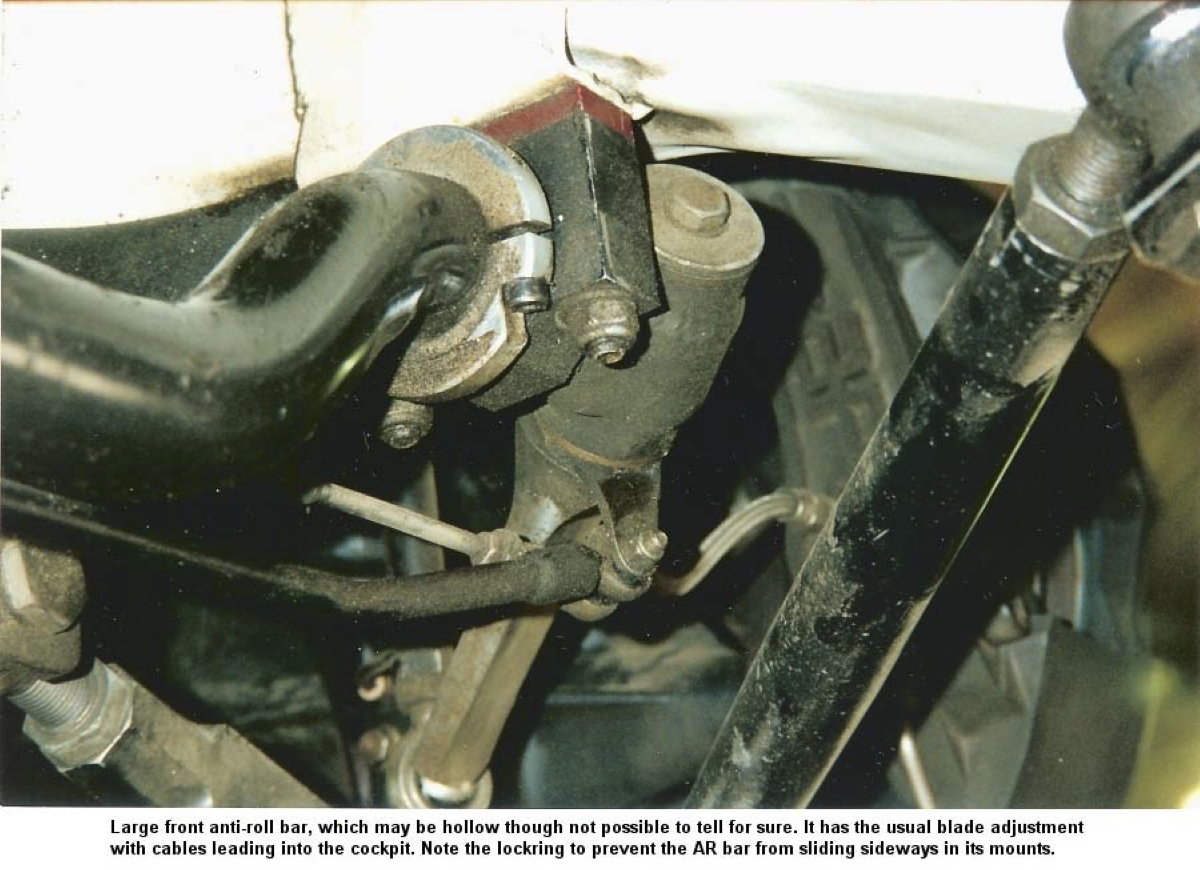

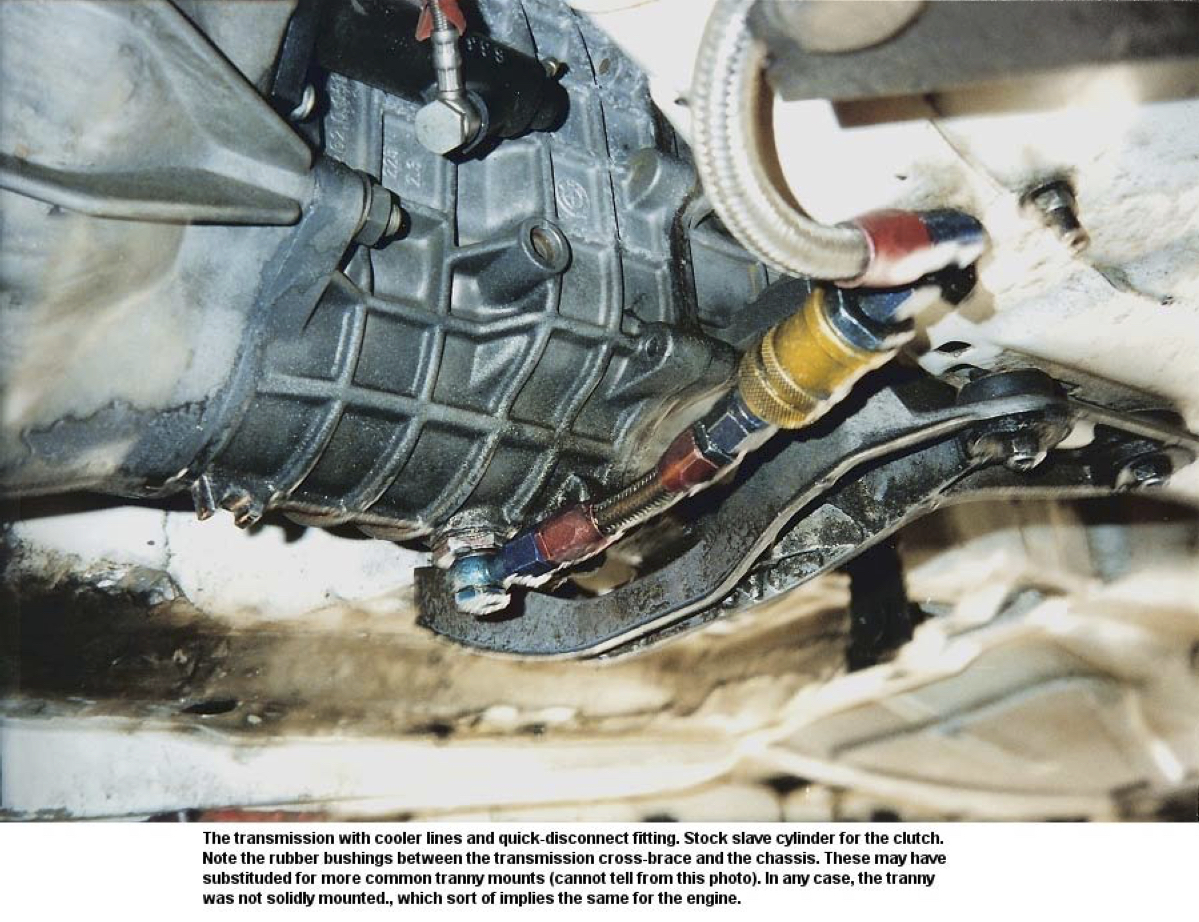

Transmission Front Anti-Roll Bar

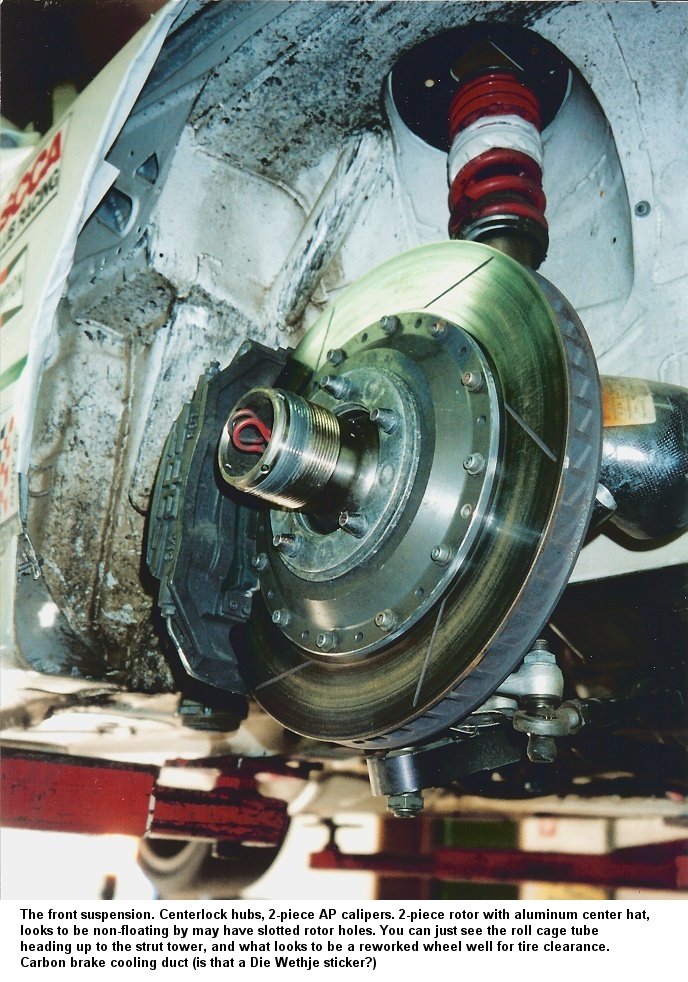

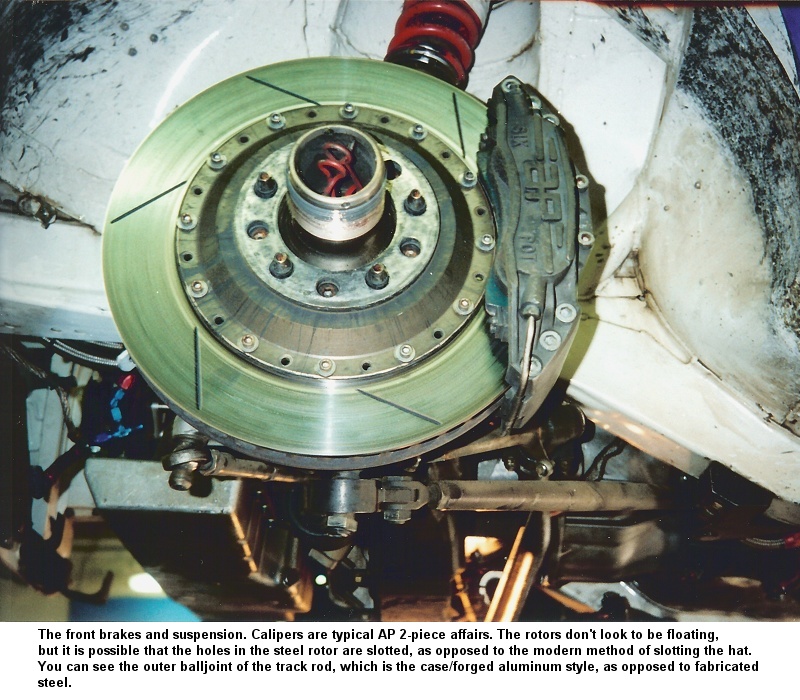

Front Brakes Front Wheel Well

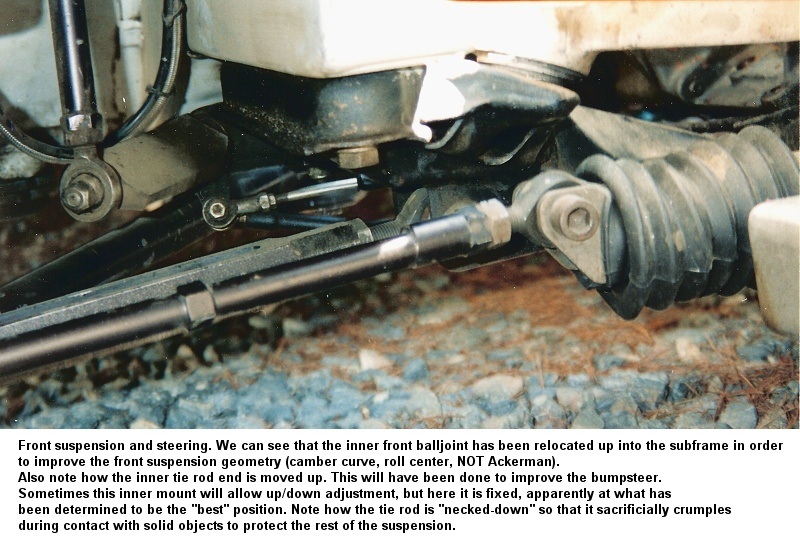

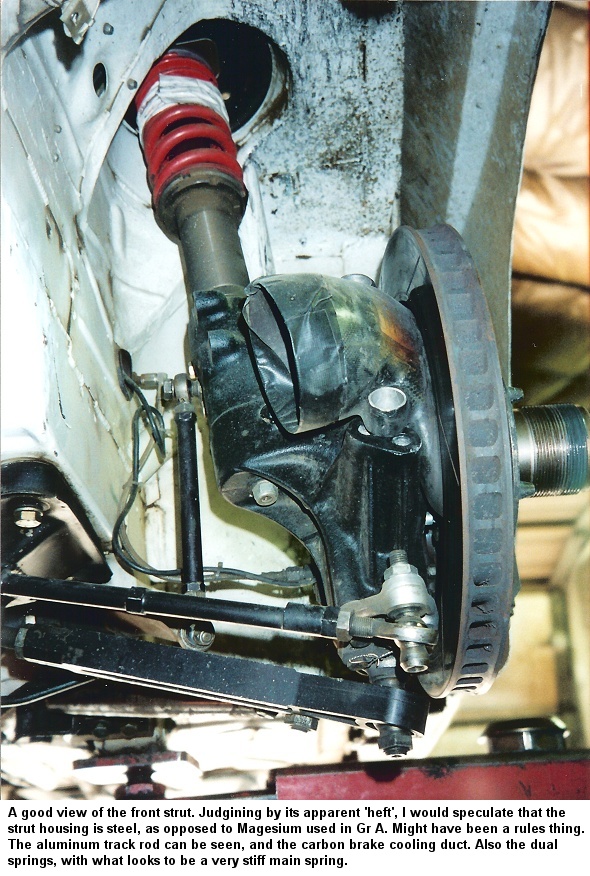

Inner Tie Rod End Left Front Suspension

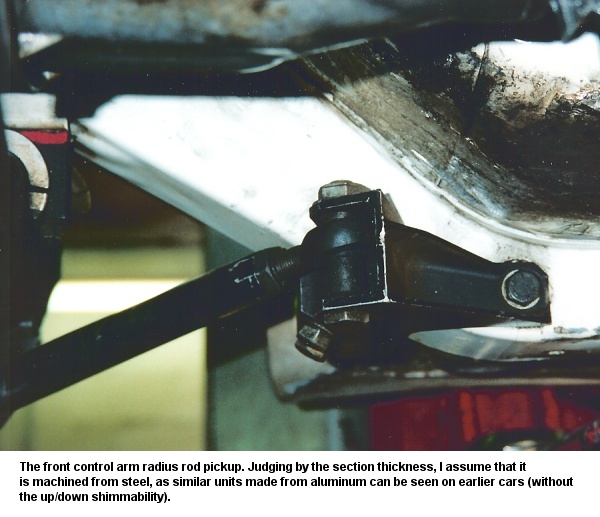

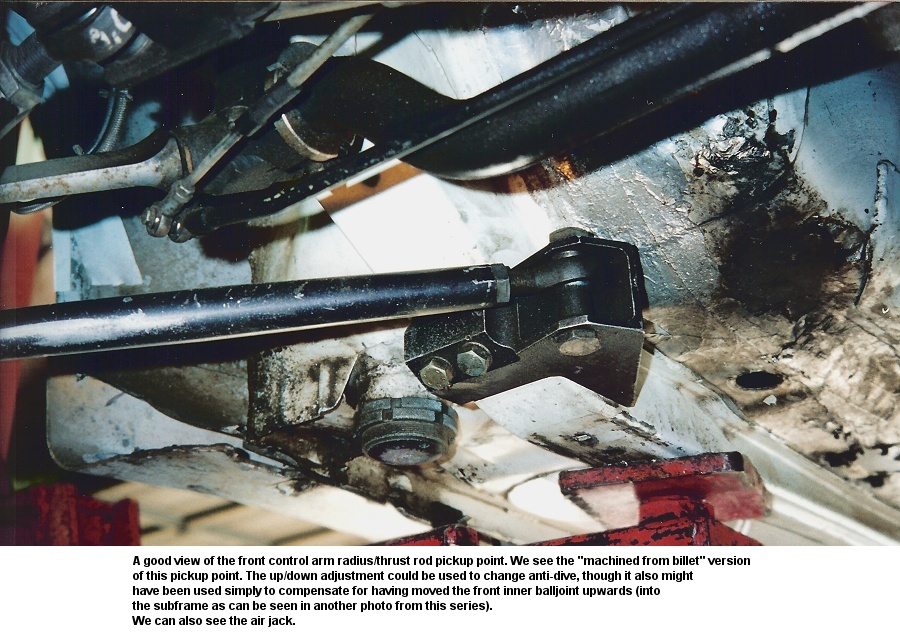

Control Arm Pickup #1 Control Arm Pickup #2

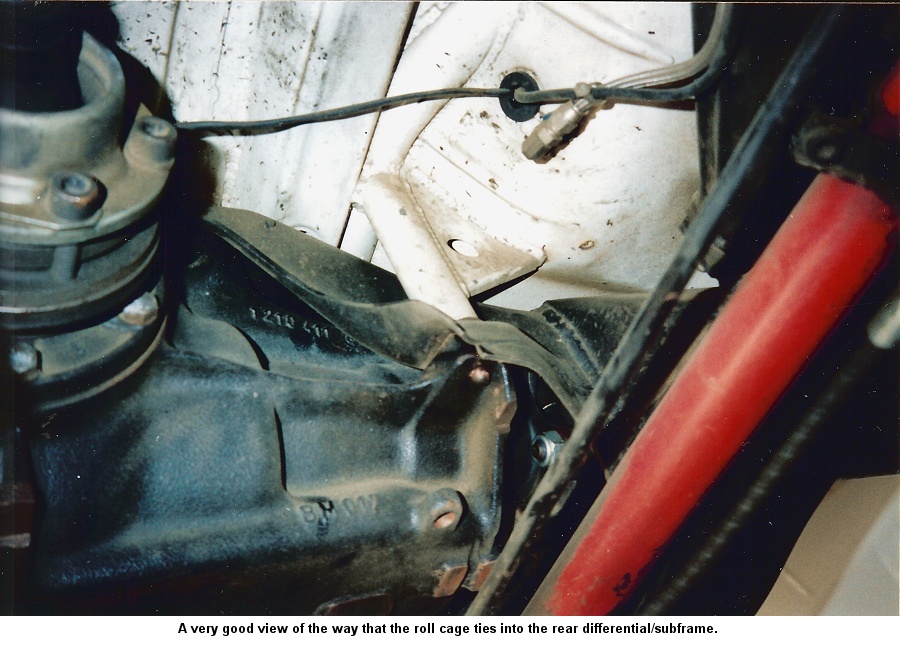

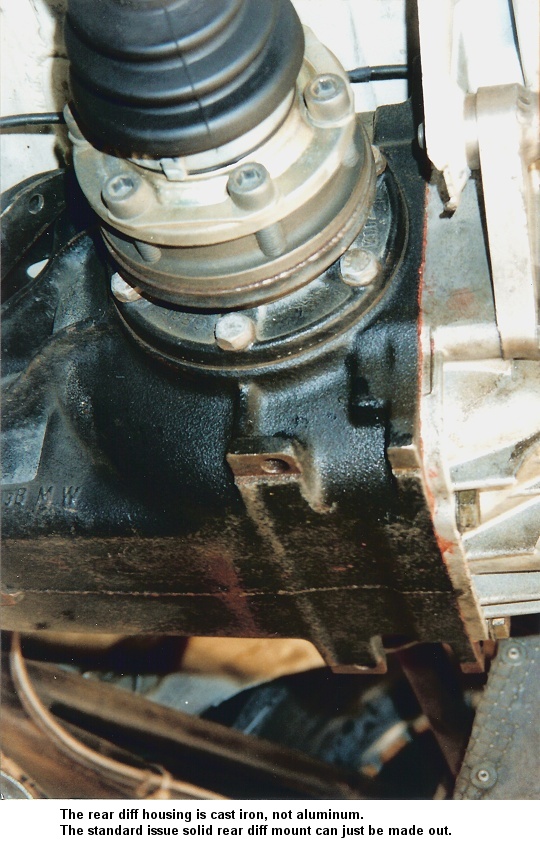

Rear Differential Rear Diff Mounting

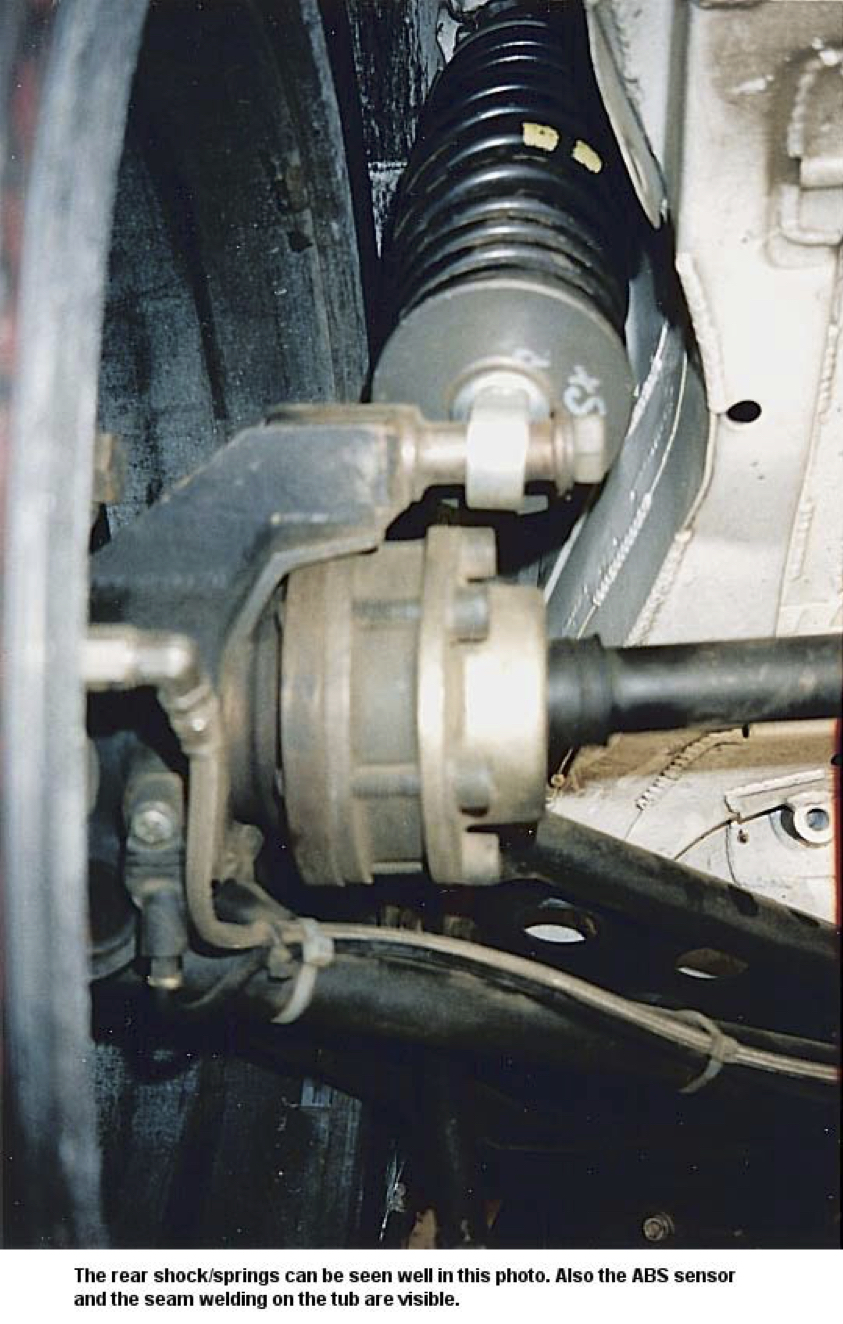

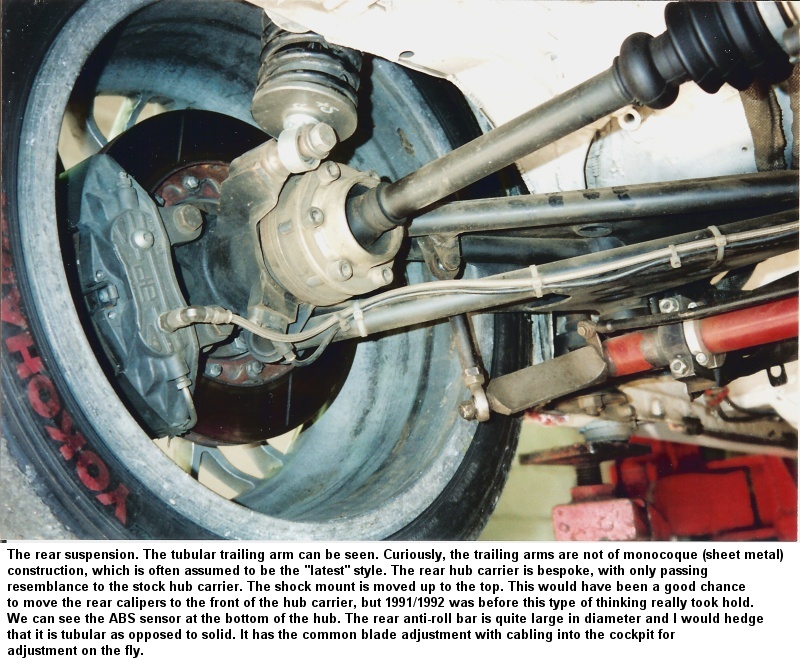

Rear Hub Carrier Rear Shock and Spring

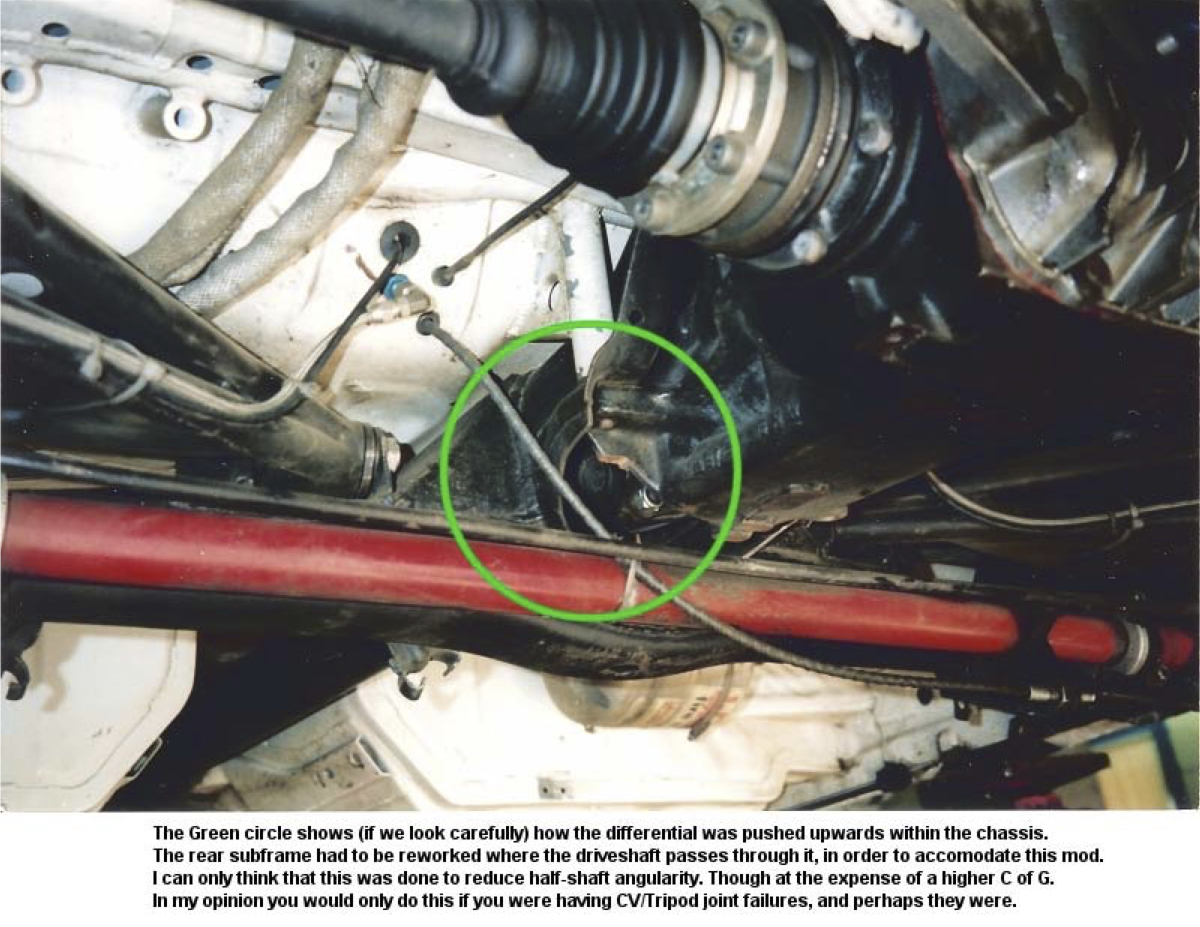

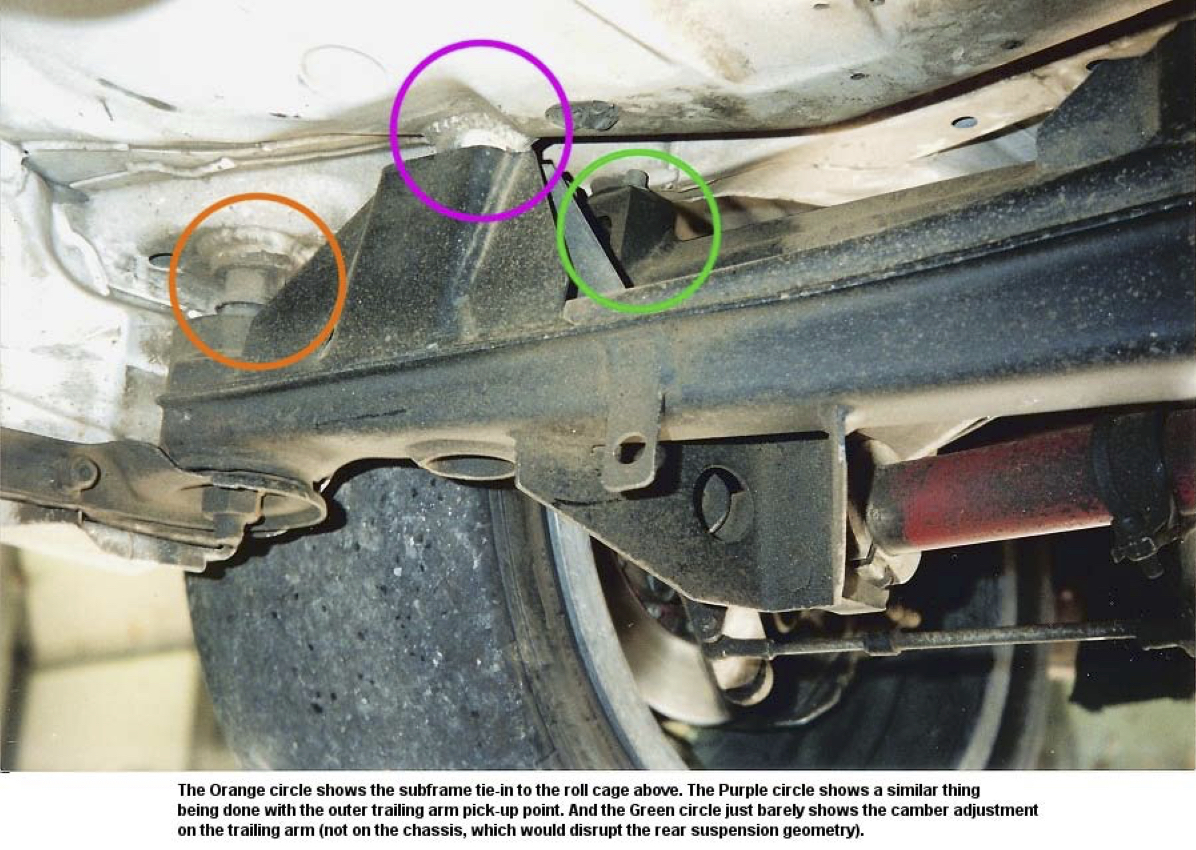

Rear Subframe #1 Rear Subframe #2

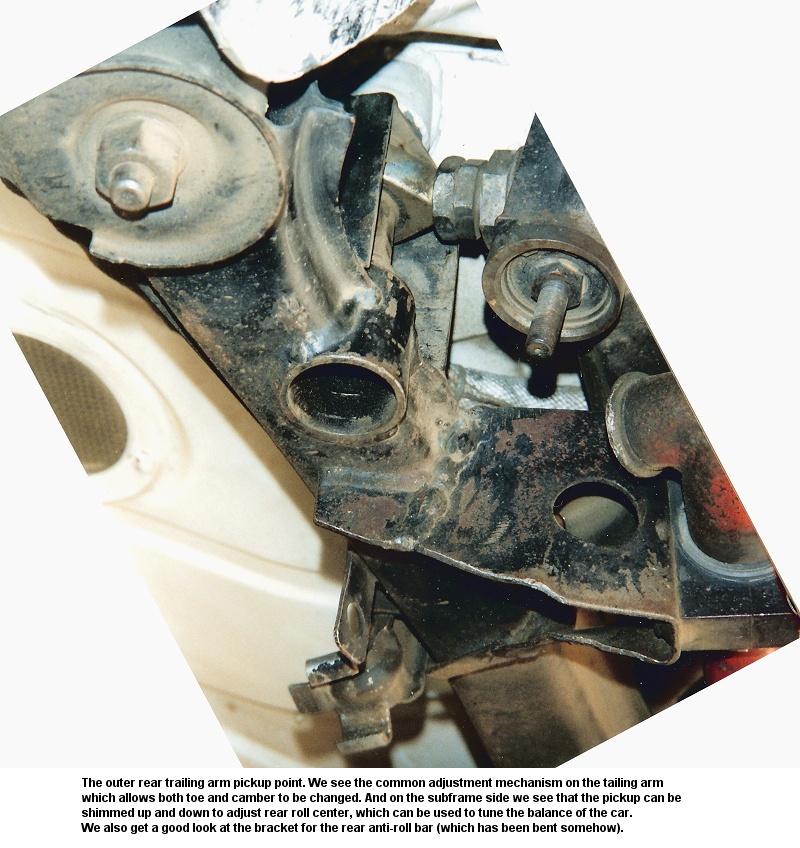

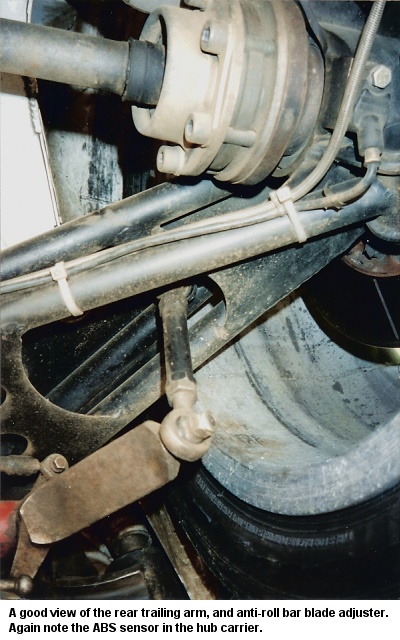

Rear Trailing Arm Trailing Arm Pickup

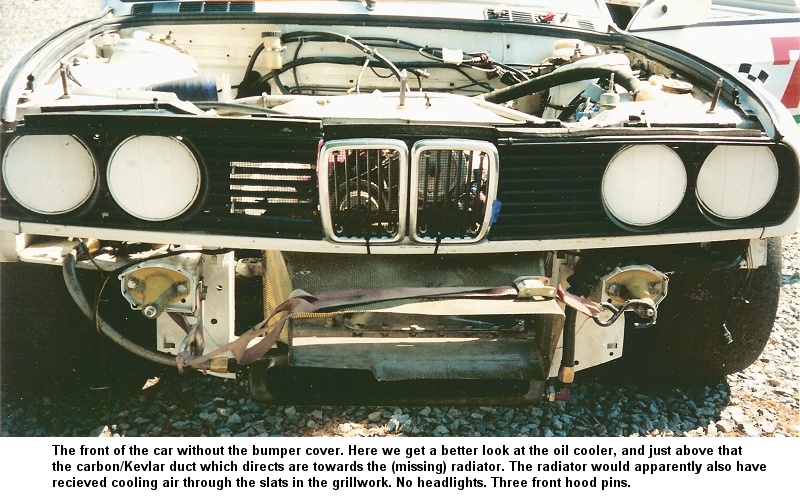

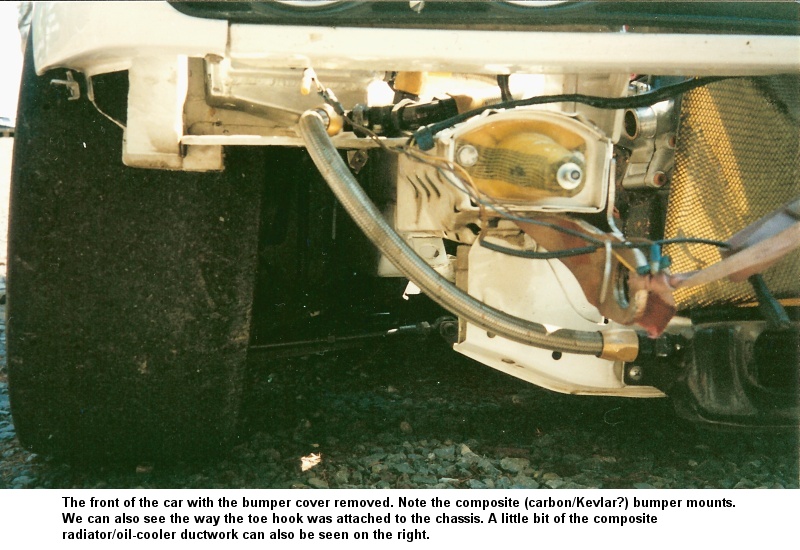

Front of Car Front Bumper Mount

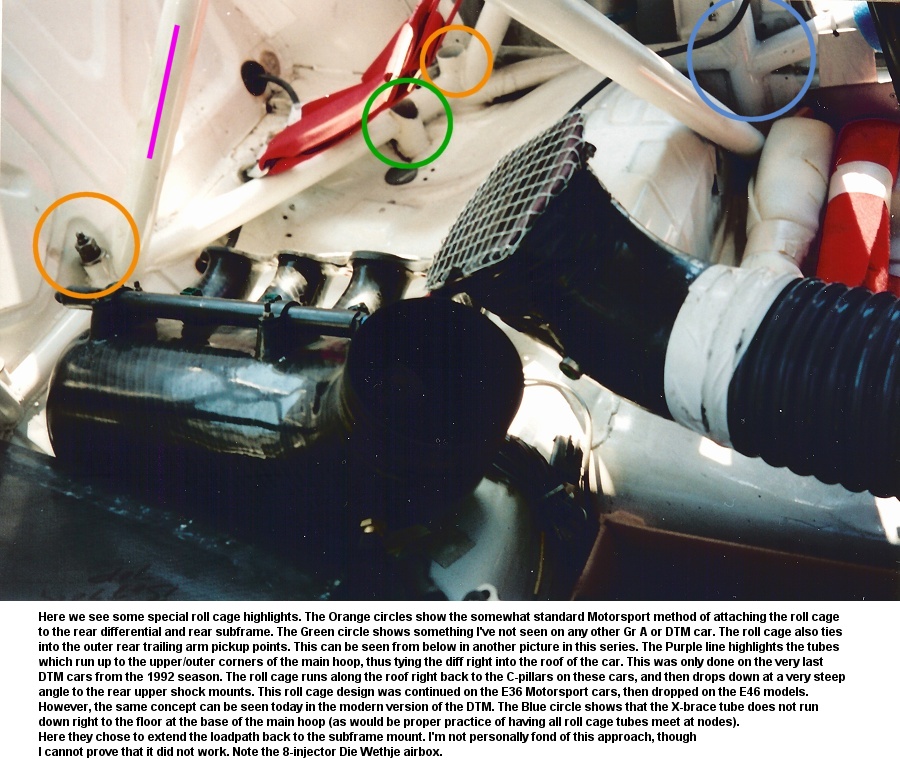

Rear Rollcage Features
