Italian Series Gruppe A E30 M3
Technical Highlights

E30 M3 Gr A brake fluid reservoirs This car used to belong to BMW club racer Ron Checca. Before he sold it he was gracious enough to take some detailed pictures of it. Those pictures are shown here.

This is an interesting car from a technical view point. It has features which I would call "late model Gr A" and yet it has other features which are more from the earlier Gr A cars. Have a look for yourself below:

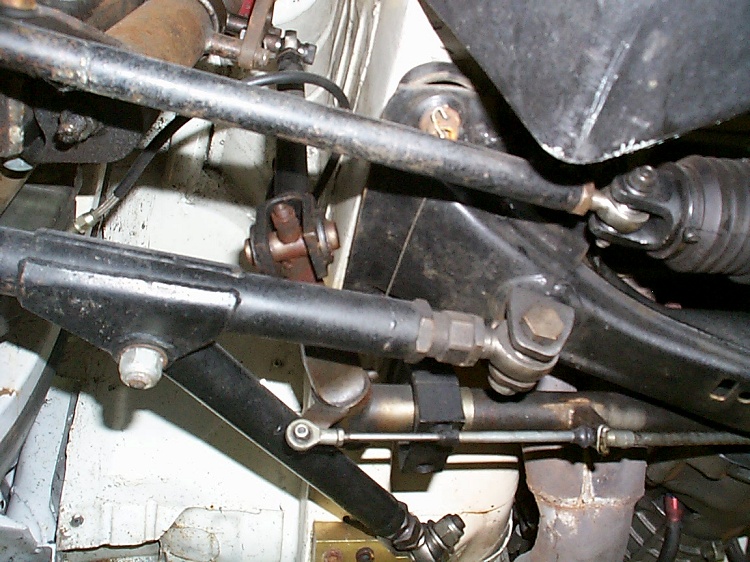

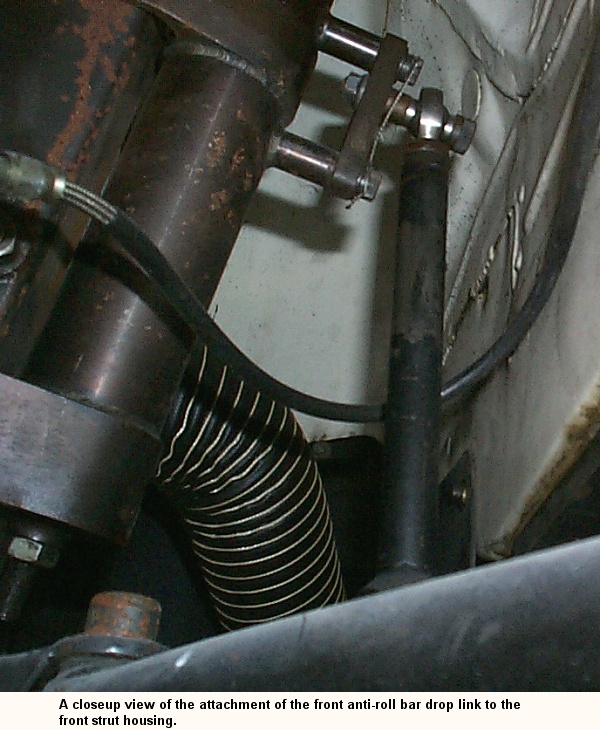

• Underside front suspension • Front AR bar drop link

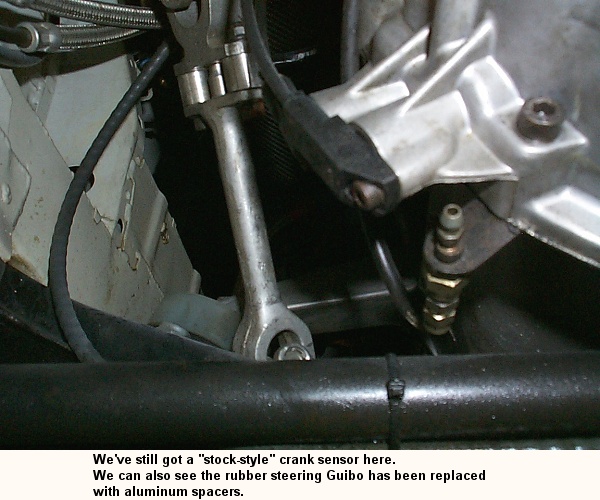

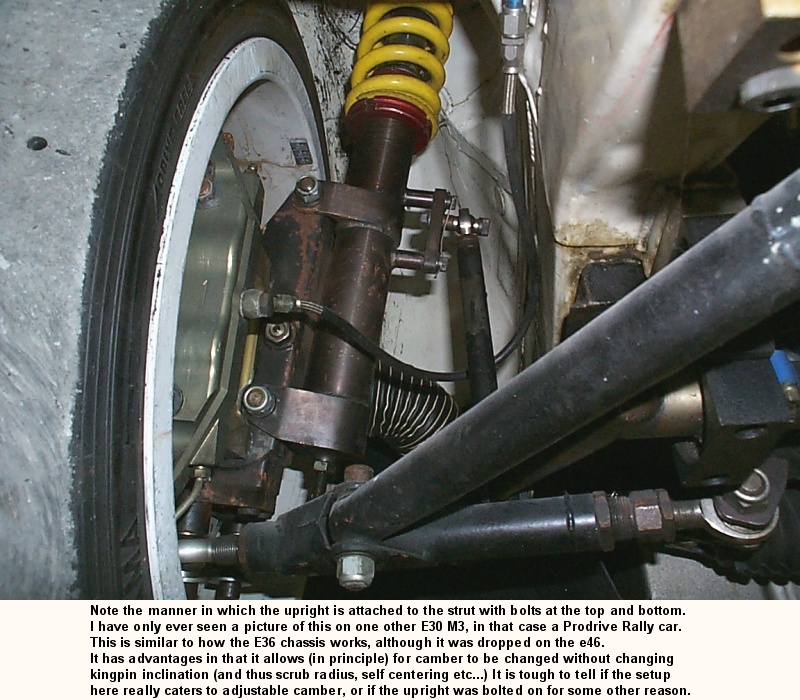

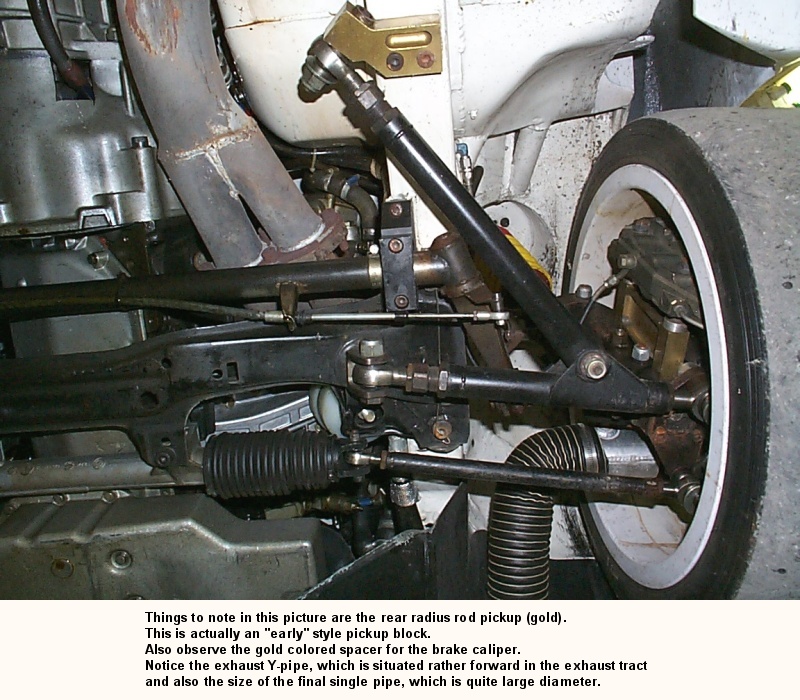

• Right front suspension • Steering coupler

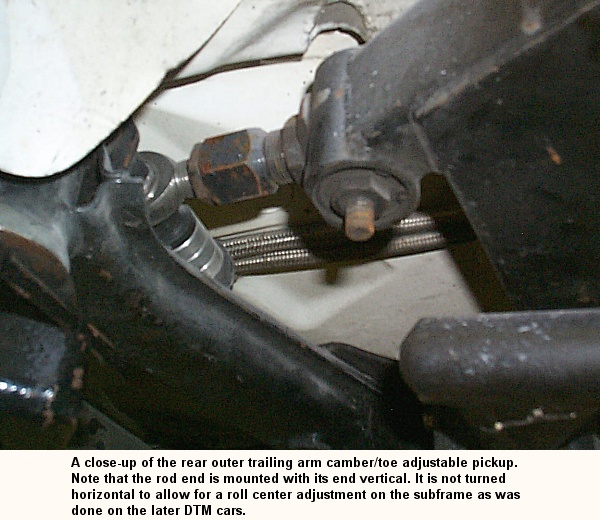

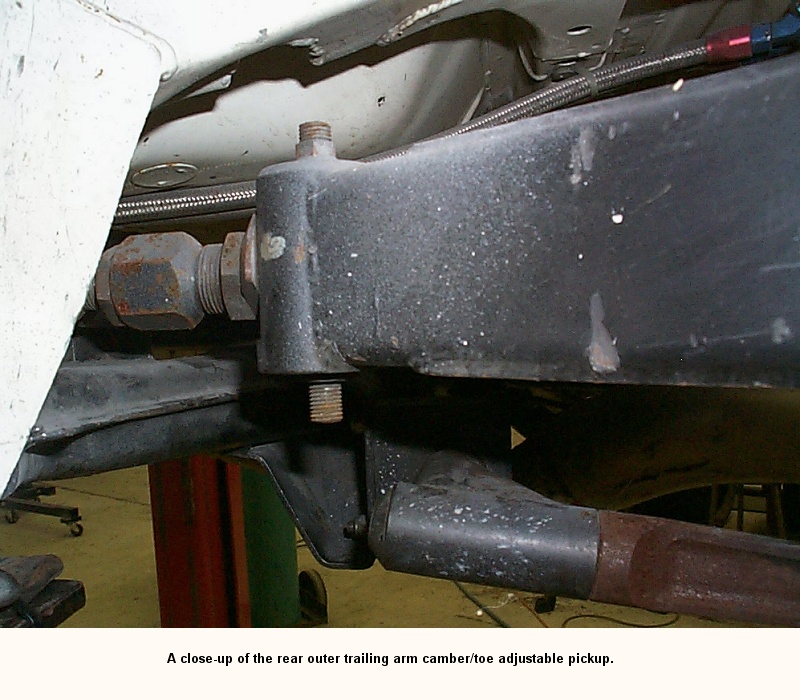

• Inner ball joint • Trailing arm camber/toe adjust

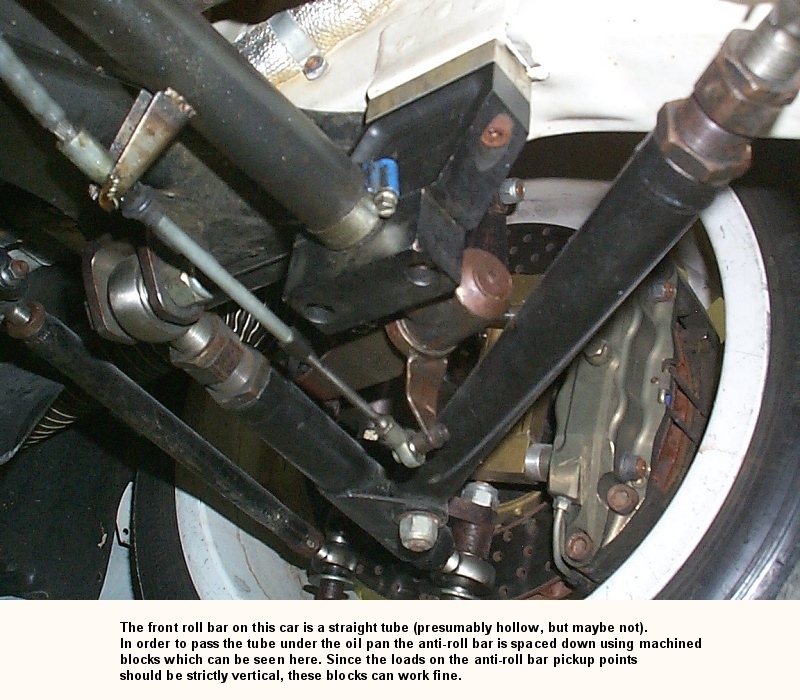

• Front anti-roll bar • Trailing arm camber/toe adjust

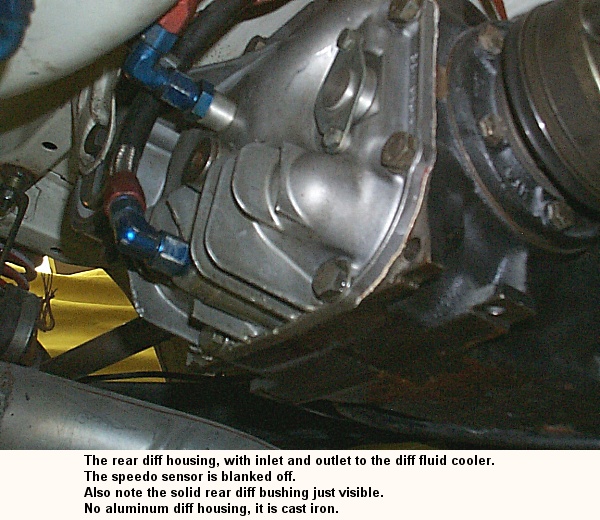

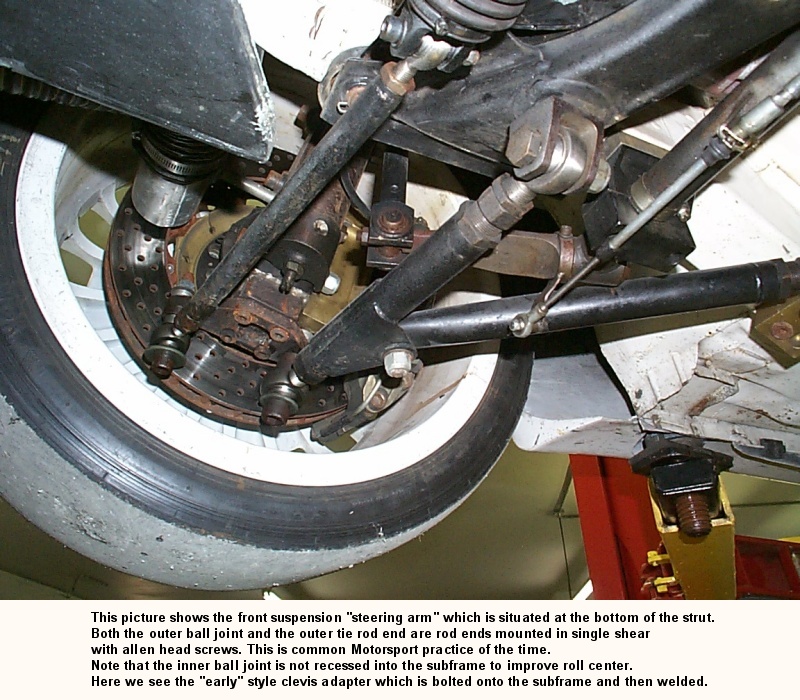

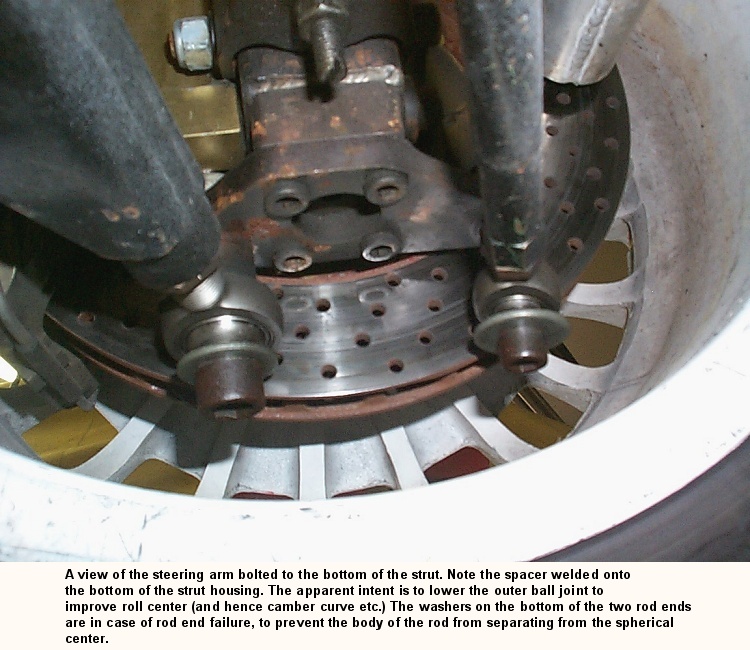

• Front steering arm • Rear diff housing

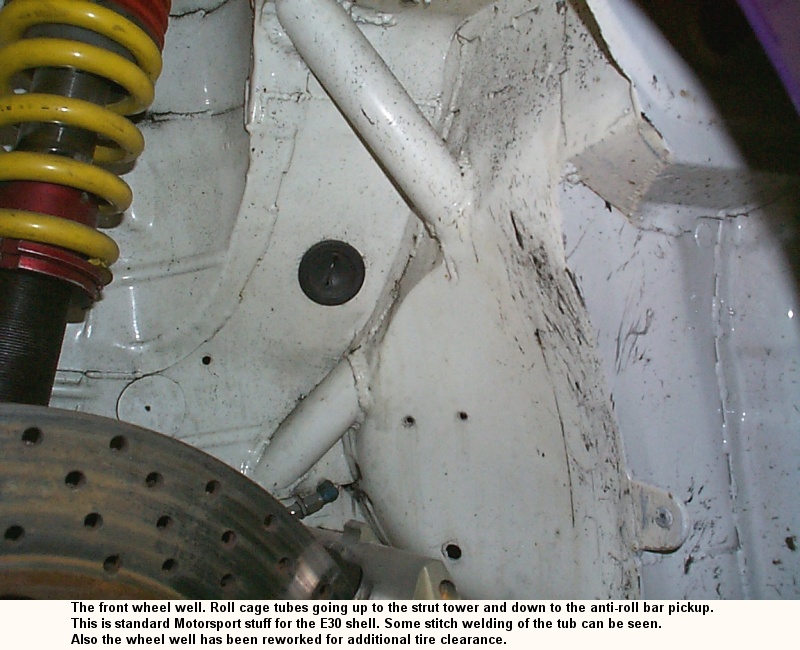

• Front strut • Front wheel well

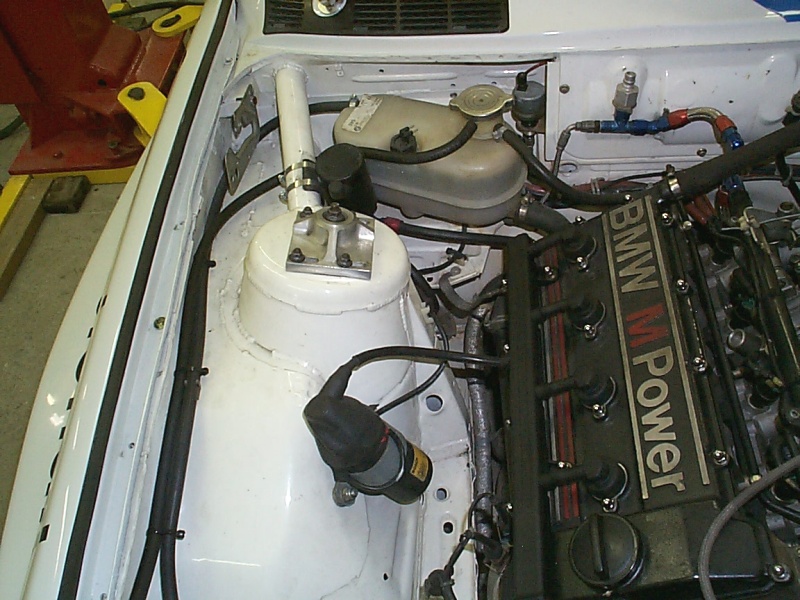

• Rear subframe • Engine bay left side
• Rear suspension underside • Engine bay right side

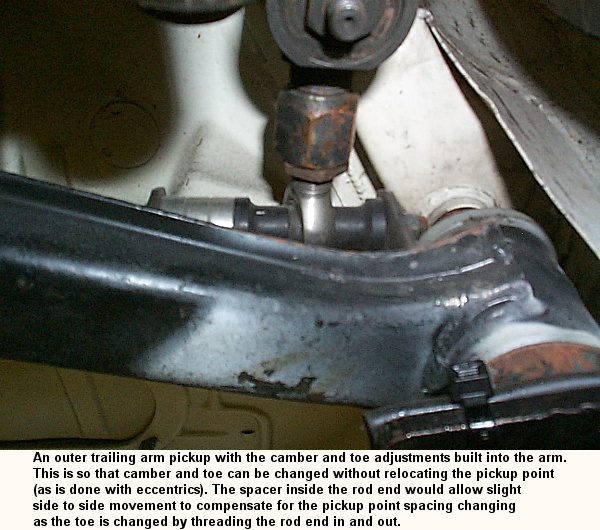

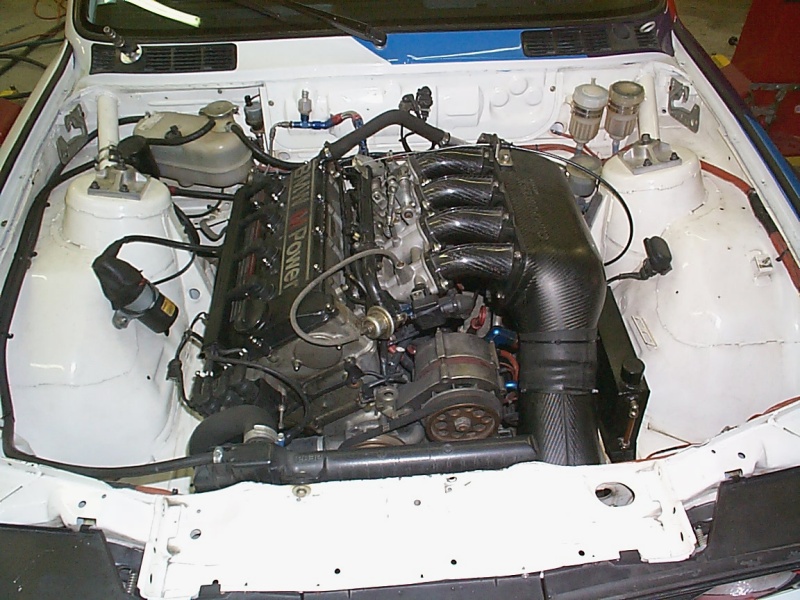

• Outer trailing arm pickup • Engine bay

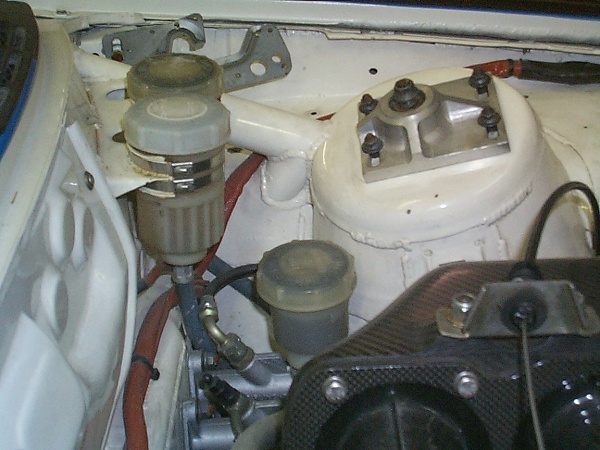

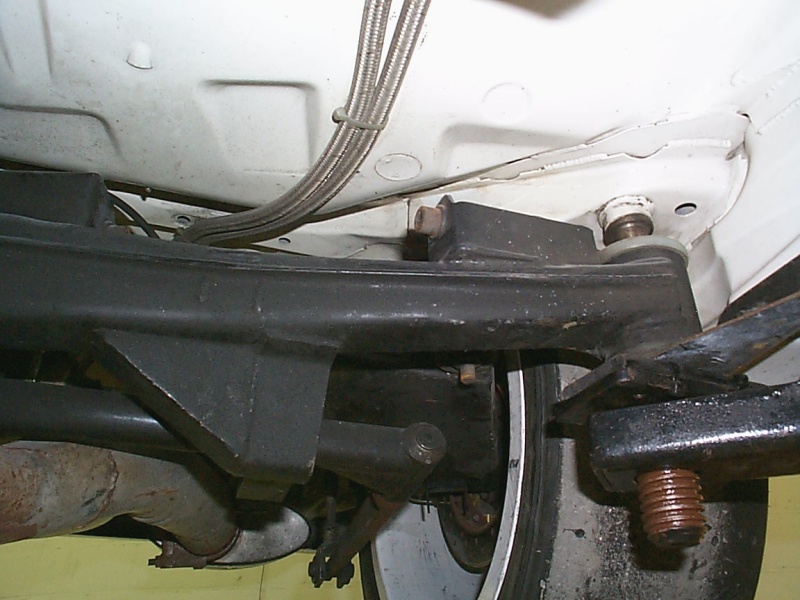

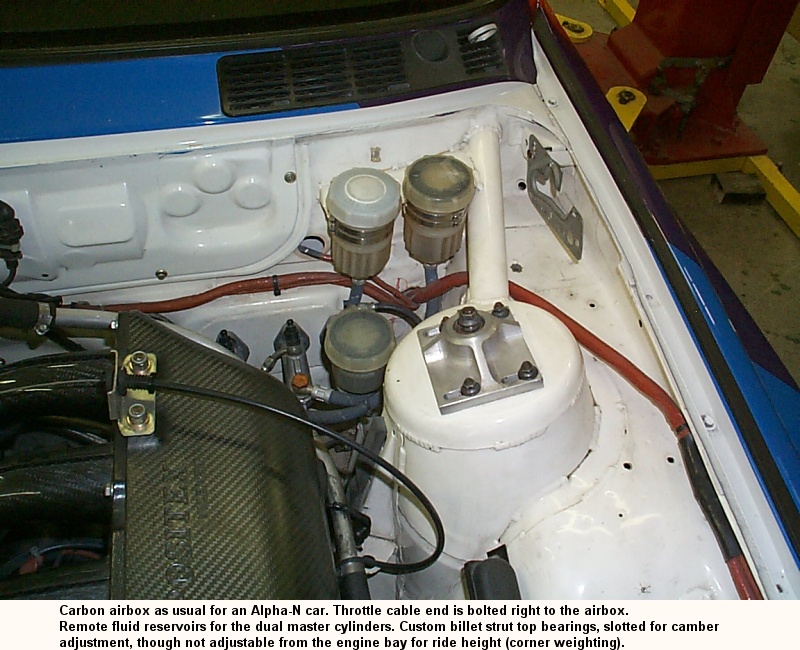

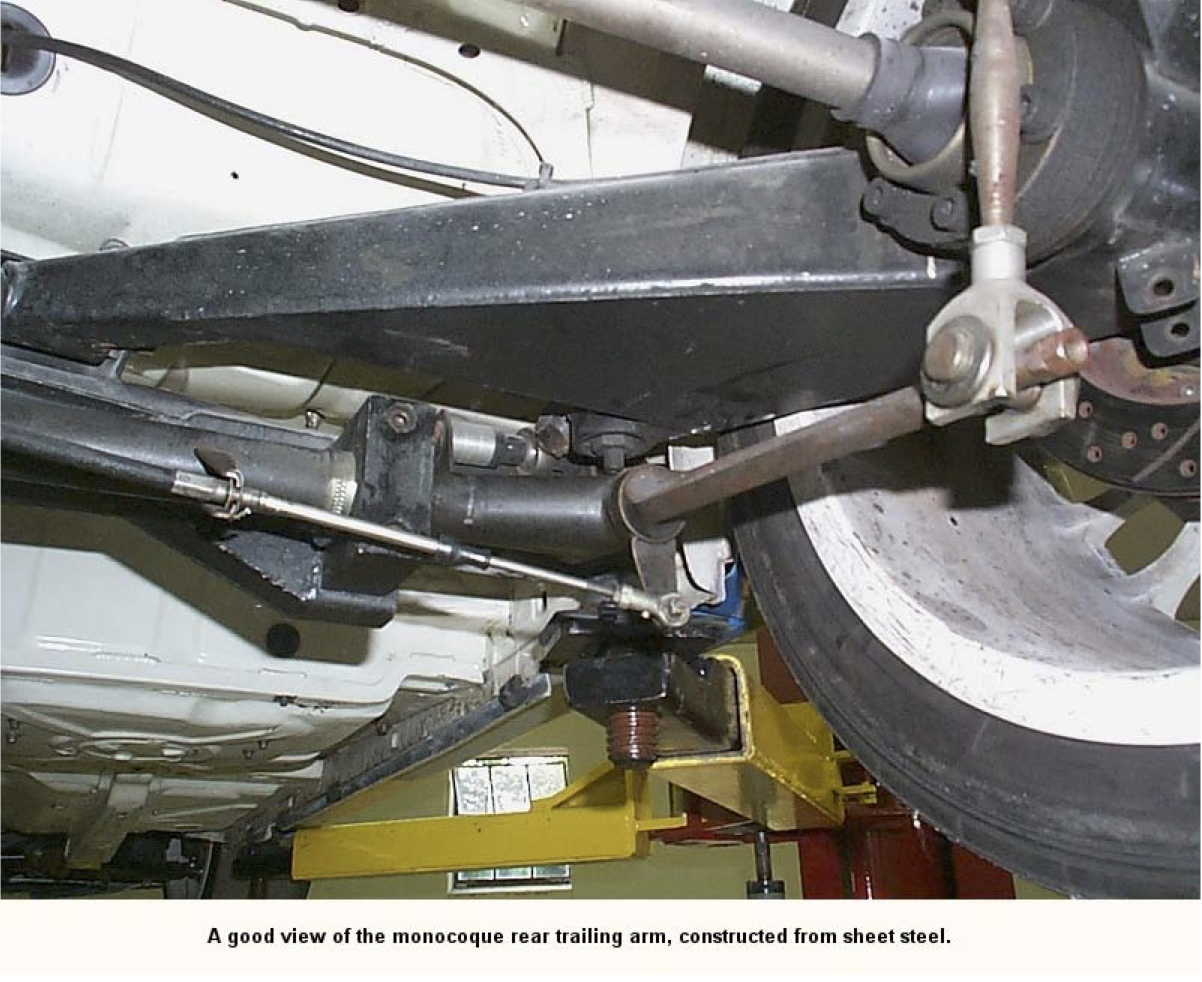

• Rear trailing arm • Brake fluid reservoirs

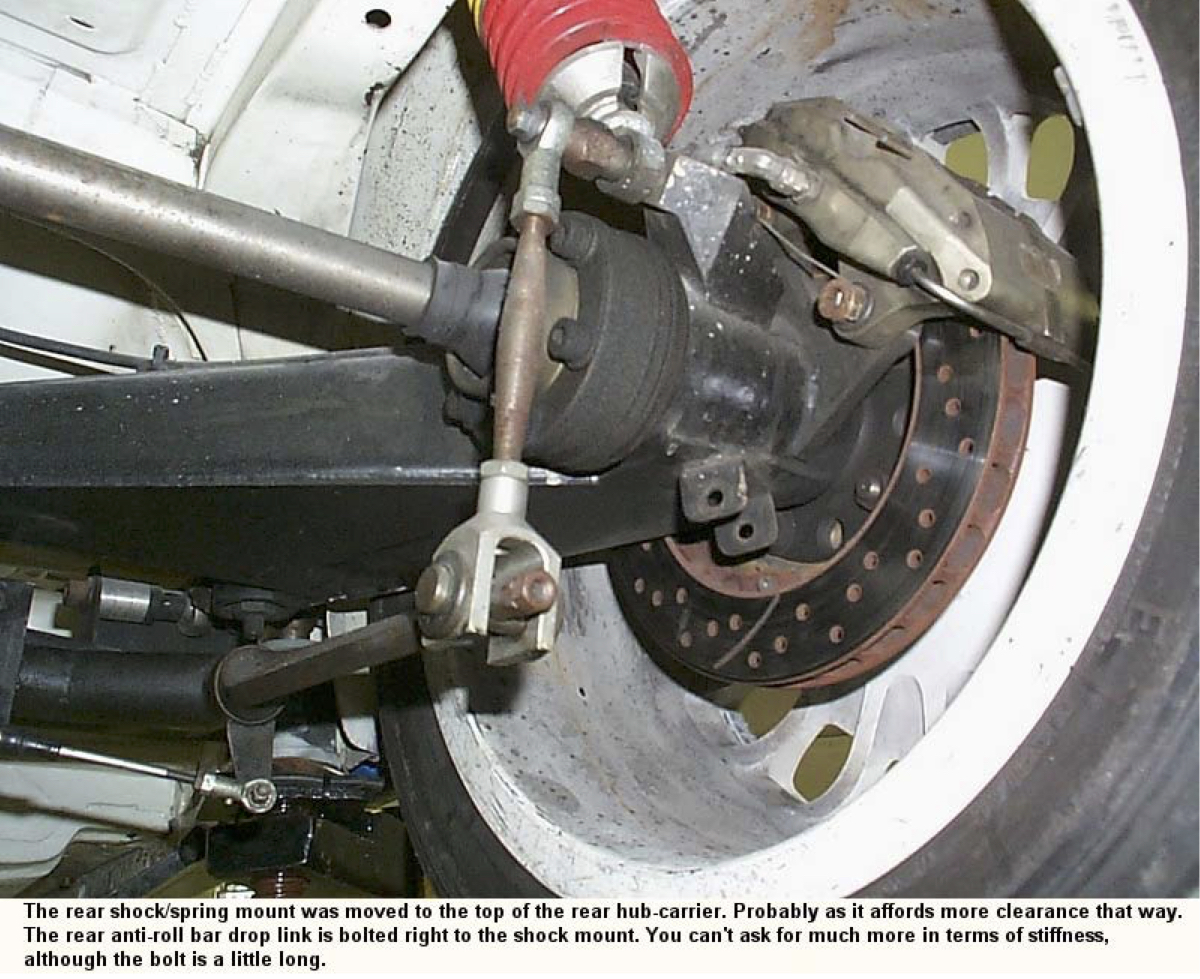

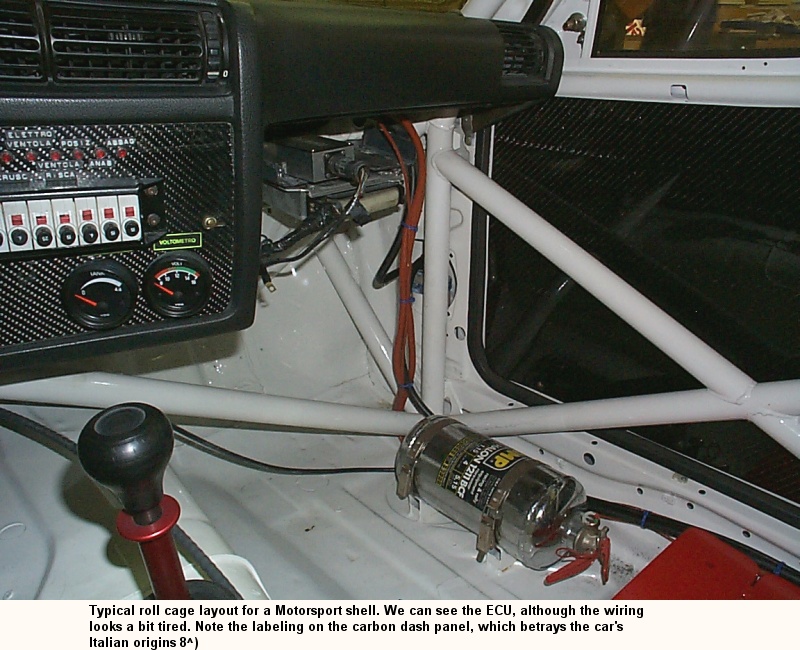

• Rear hub carrier • Interior passenger side

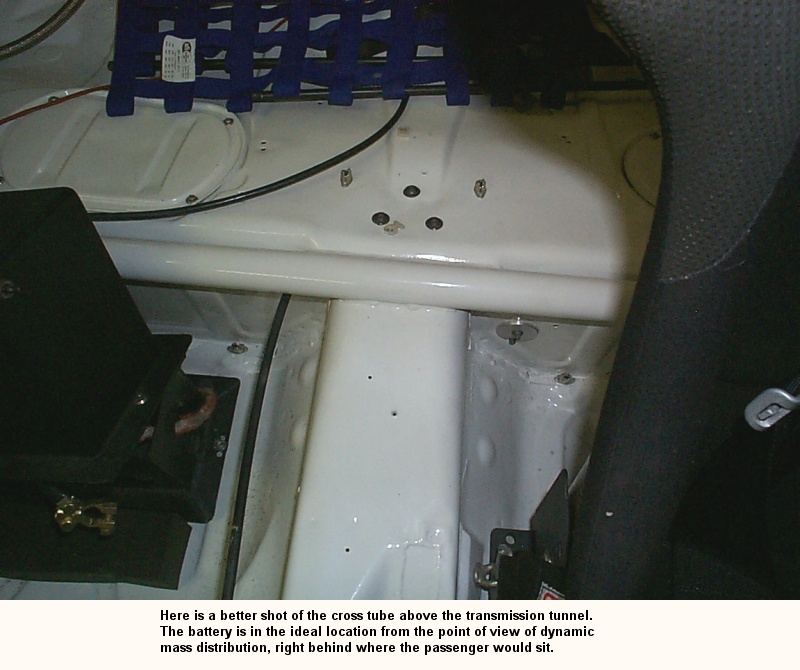

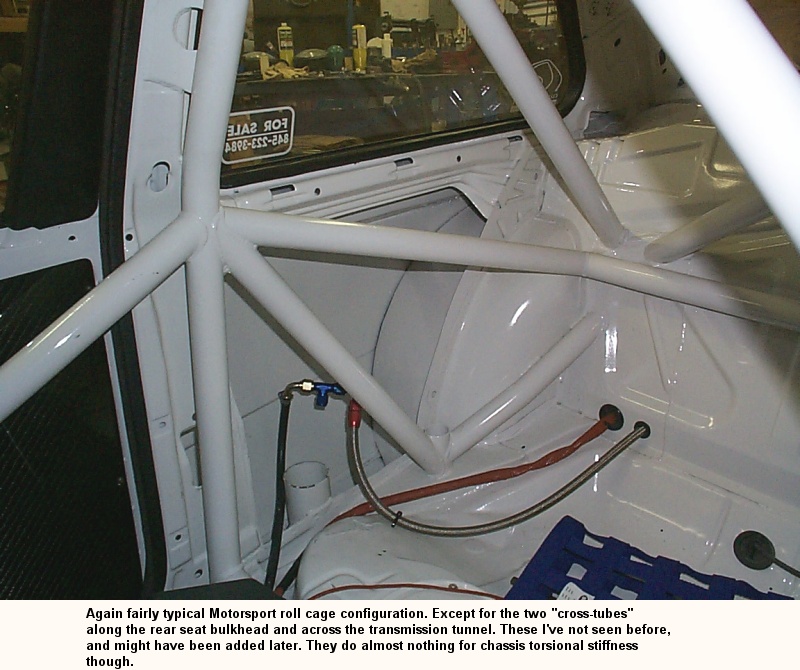

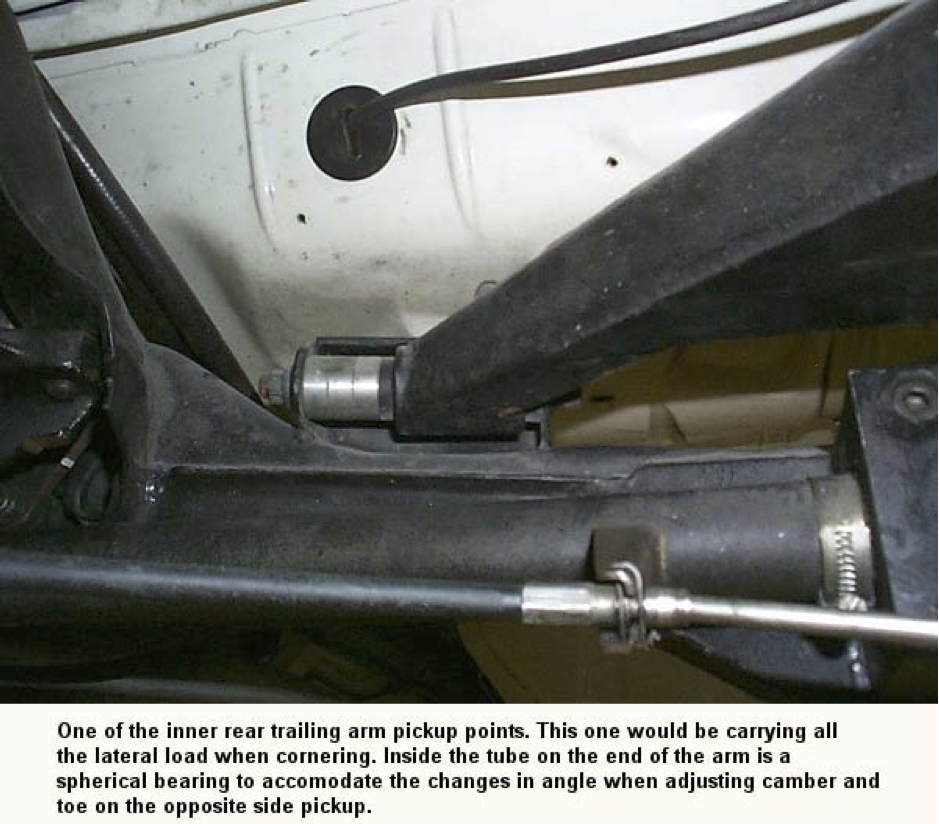

• Inner trailing arm pickup • Interior rear seat area

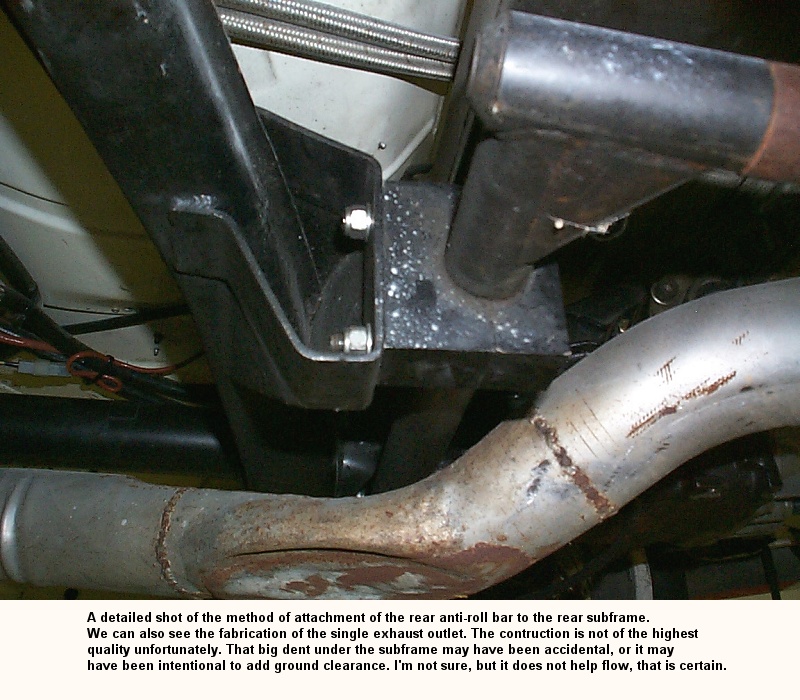

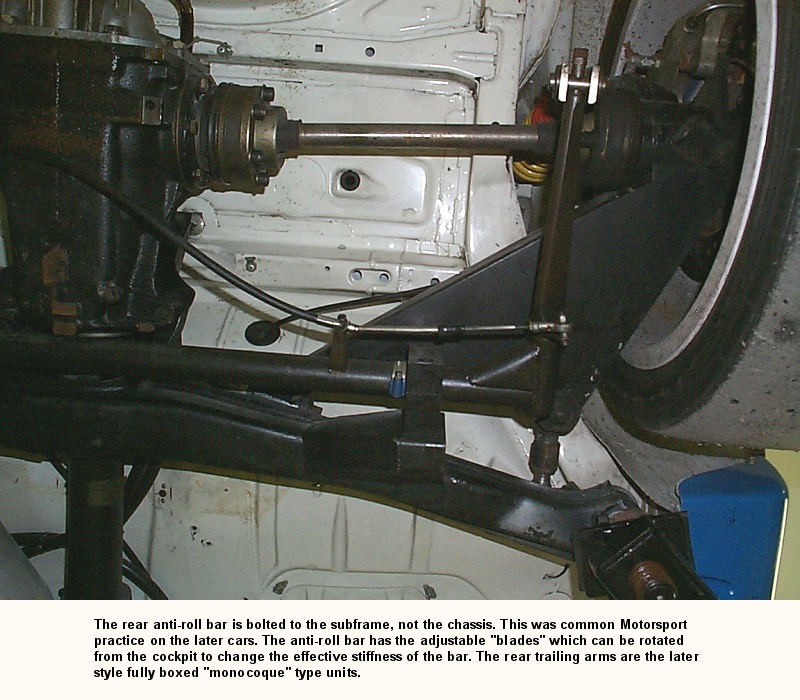

• Rear anti-roll bar • Interior rear seat area
