S14 Cylinder Head Porting Job
Page 1
/
Page 2
/
Page 3
Turner Stage III


These are photos of Jim Butterworth's S14 cylinder head with a Turner Stage III porting job. This is the "full blown", "big valve" porting job intended for deep breathing 2.5's. The photos are shown for illustration...

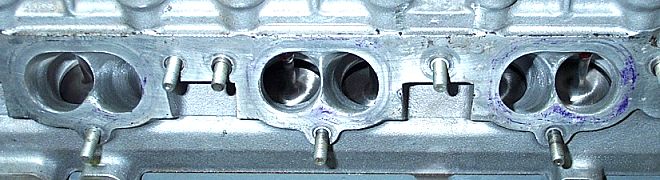

S14 Cylinder Intake Ports w/ TMS Stage III Porting Job
Photo 1 - Intake Ports

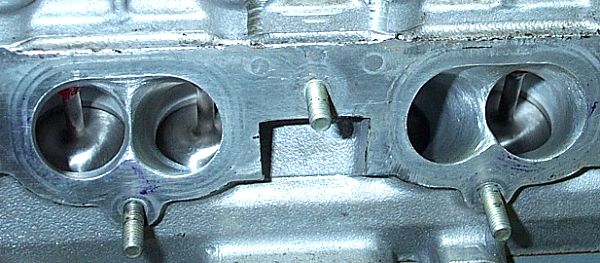

S14 Cylinder Intake Ports w/ TMS Stage III Porting Job
Photo 2 - Intake Ports

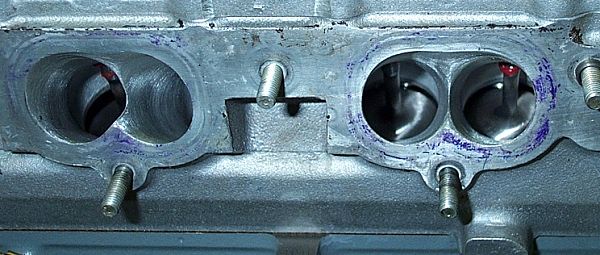

S14 Cylinder Intake Ports w/ TMS Stage III Porting Job Photo 3 - Intake Ports
