E36 McLaren Super Touring Car
« Previous / Next »
Page 2

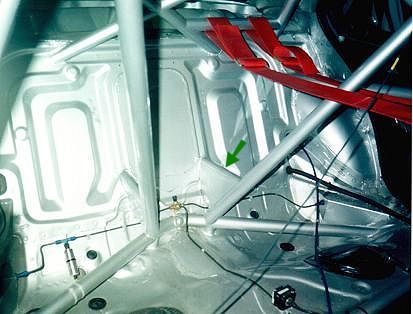

 Another view of the rear 'double hoop' roll cage

Here we have essentially the same view as on the previous page except that the details near the bottom of the rear seat area are better illustrated. Note the green arrow. Those braces going to the rear bulkhead actually support the rear anti-roll bar. This will be shown later on.
