Evo III Undertray Brake Duct Cutout |

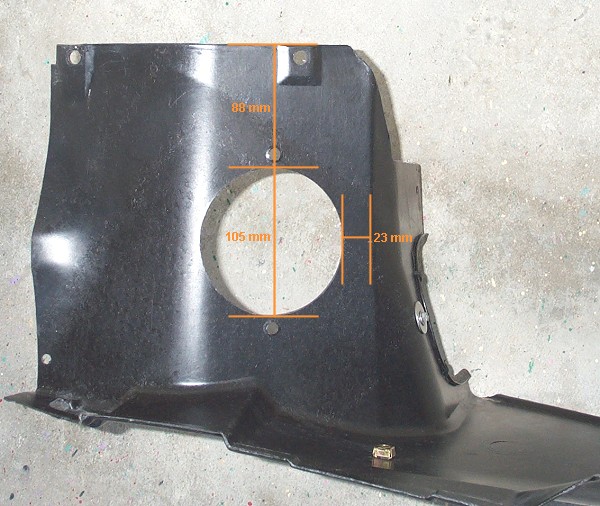

The photo above can be used by owners wishing to install the complete Evolution III brake duct setup to a non-E3 style E30 M3. The Evo III brake ducts dump into the wheel well, as with most other BMW cars. The secondary E3 ducts attach to the undertray. But it is difficult to know where to cut the holes for the ducts, as when the whole assembly is fitted to the car, visibility is limited. The photo above should help owners determine where to cut the duct holes. |
|
|
|
