SI Board Swap Out Step #2
SI Board Swap Out Step #2

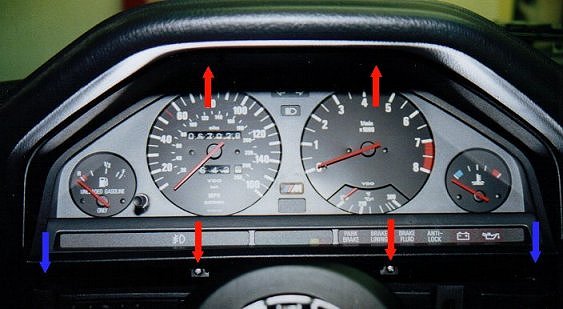

Now it's time to remove the cluster trim.  This is a hard plastic trim piece which goes around the instrument cluster.  The six arrows above point out the six philips screws which hold the cluster trim in place.  The lower screws are normally hidden by the lower trim panel but are now exposed.  The upper two screws are always visible.  The outer screws highlighted by the blue arrows not only hold the cluster trim in place, they also hold the actual instrument cluster in place (along with two more screws at the top which are hidden by the trim).

Remove the six screws with a small Philips screwdriver and pull off the cluster trim.
